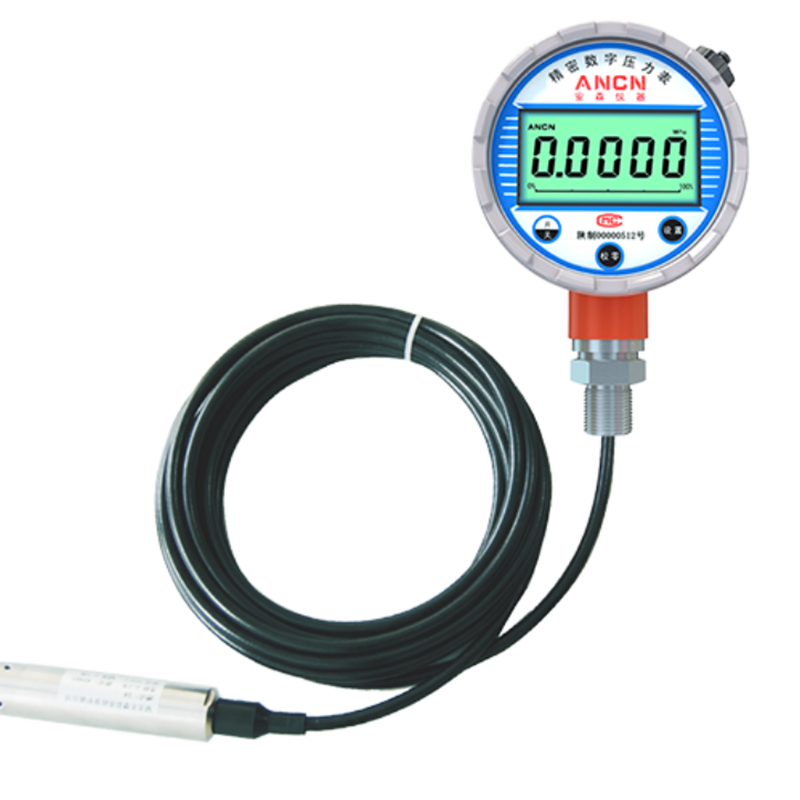

ACD-201L Static-Pressure Liquid Level Meter

Short Description:

Based don Digital Liquid Level Meter of ACD-200L, we increase the remote transmission function which create a model Liquid Level Meter of ACD-201L. By adopting output communication module, RS485 communication, USB communication, (4-20) MA current signal output, ACD-201L can be directly read by monitoring PC through communication software to store, process and report output of the measure data. Signal isolated technology, reduce the interference. Built-in lithium battery can work for 5～8 years. ACD-201L Liquid Level Transmitter can acquire the level data consistently when external power off (communication function failed because of external power off). Installation of radial, axial and reel packing are available for choice.

Send email to us

Product Detail

Product Tags

Details

Model	Digital Static-Pressure Liquid Level Meter ACD-201L

Brief Introduction		Based don Digital Liquid Level Meter of ACD-200L, we increase the remote transmission function which create a model Liquid Level Meter of ACD-201L. By adopting output communication module, RS485 communication, USB communication, (4-20) MA current signal output, ACD-201L can be directly read by monitoring PC through communication software to store, process and report output of the measure data. Signal isolated technology, reduce the interference. Built-in lithium battery can work for 5～8 years. ACD-201L Liquid Level Transmitter can acquire the level data consistently when external power off (communication function failed because of external power off). Installation of radial, axial and reel packing are available for choice.
Product Patent		Utility model patent certificate		ZL2008 2 0028605.1 《digital instrument button and display device》
				ZL2009 2 0062360.9 《micro power consumption and low pressure drop sensor constant current drive circuit》
		Patent for industrial design		ZL2008 3 0019531.0 《instruments (pressure test gauge) 》
Application		For the level measure of well, pond, water tower, etc
		For the level measure and monitoring of water conservancy and hydropower
		Water level measurement of urban water supply and sewage treatment
		Liquid level measurement and control in industrial field
		Liquid level measuring for all kinds of open tank, water tank and liquid tank
Characteristics		Support liquid density modification, can be directly measured in different media
		Acquisition speed （0.25～10）S/A (S=second, A=acquisition )， settable freely
		Its development design of battery power supply, is convenient to replace the battery at any time
		RS485 communication、USB communication、（4~20）mA electrical current output , available
		Never Off-Line Communication technology, data bus can support 255 units of RS485 sub devices
		Super Power Management Technology, battery life can be in service for 5~8 years
		Signal-isolation technology , anti-electromagnetic and radio frequency interference technology
		Buttons pressed with magnetic induction pen, exempt from interference, not easy to damage
		Broad 5 digits LCD display, very clear for eye-catching
		Visual Level percentage bar chart display, easy to understand
		Automatic temperature compensation technology, to reduce the error in harsh environment
		Zero Self-Stability technology, with temperature compensation automatically, stability reliable
Parameters		Measuring Range			0~1mH2O~200mH2O ( any scope within it )
		Accuracy grade			0.05 / 0.1 / 0.2 / 0.5
		Output Signal			(4～20)mA (24V DC, two wire); (1～5)V (24V DC, three wire)
		Communication			RS485 / USB
		Range Migration			Suggested not exceed 3:1 (to electrical current output signals）
		Over Load Capacity			RL = U-12(V) / 0.02(A)
					U— Loop voltage（V）
					RL—Allowable Load Resistance （Ω）
		Power supply mode			Inner: build-in one 3.6V high power lithium battery
					External：（10~30）V DC
		Acquisition Speed			（0.25～10）S/A (S=second, A=acquisition)，default is 0.5 S/A， time is settable
		Stability performance			<0.1% FS per year
		Battery life	Picking rate				4Hz	2Hz	1Hz		0.5Hz
			Life time				2.8 yeas	5 years	5.5 years		7 years
			Picking rate				1/3Hz	1/4Hz	1/(5-10)Hz
			Life time				9 years	More than 10 years
		Operating temperature				-30℃～70℃
		Relative humidity				＜90%
		Barometric pressure				86-106KPa
		Others				Calibration reference operating temperature 20℃±2℃
						0.05 accuracy requires operating temperature 0-50℃
		Medium Temperature				General temperature range				-40～120 ℃
						Wide temperature range				-60～150 ℃
		Display mode				five figures dynamic display and percentage bar chart
		Protection Degree				IP65
		Explosion-proof grade				ExiaIICT4 Ga
		Overload Pressure				1.5-3 times of measuring range, depending on the measuring range
		Software				AncnView-T analysis software ( with USB communication), can Export instrument data, automatic storage, automatic drawing temperature curve, can be exported to Excel form, read, print,save.
