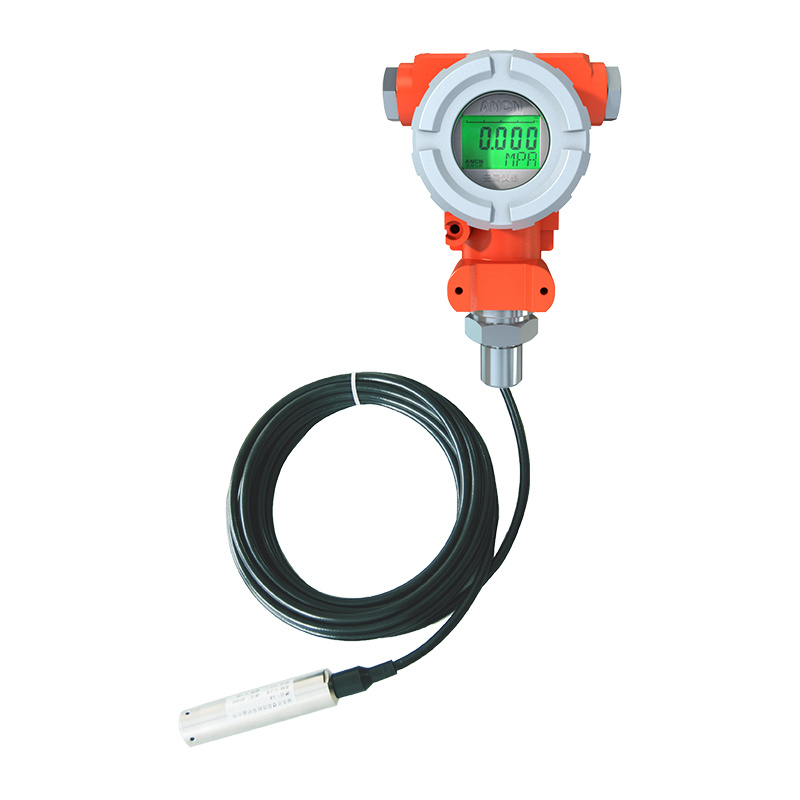

ACD-302L Static-Pressure Liquid Level Transmitter

Short Description:

Based on years of technical experience of independent research and development of ANCN brand intelligent instruments in the past, we make the Digital Static-Pressure Liquid Level Meter of ACD-302L. This instrument not only has the transmitter function of (4 ~ 20) MA analog signal output, but also can increase the function of RS485 digital communication. Matched with the communication software, ACD-302L can be directly communicated with computer or other communication interface for data acquisition, and the detecting data preservation, processing and report output. It adopts the most advanced micro power consumption devices and improved software technology. Its 5 digits LCD backlight features makes it very rare outstanding one among the Liquid Level Transmitters.

Send email to us

Product Detail

Product Tags

Details

Model	Static-Pressure Liquid Level Transmitter ACD-302L

Brief Introduction		Based on years of technical experience of independent research and development of ANCN brand intelligent instruments in the past, we make the Digital Static-Pressure Liquid Level Meter of ACD-302L. This instrument not only has the transmitter function of (4 ~ 20) MA analog signal output, but also can increase the function of RS485 digital communication. Matched with the communication software, ACD-302L can be directly communicated with computer or other communication interface for data acquisition, and the detecting data preservation, processing and report output. It adopts the most advanced micro power consumption devices and improved software technology. Its 5 digits LCD backlight features makes it very rare outstanding one among the Liquid Level Transmitters.
Product Patent		Utility model patent certificate	ZL2008 2 0028605.1 《digital instrument button and display device》
			ZL2009 2 0062360.9 《micro power consumption and low pressure drop sensor constant current drive circuit》
		Patent for industrial design	ZL2008 3 0019531.0 《instruments (pressure test gauge) 》
Application		For the level measure of well, pond, water tower, etc.
		For the level measure and monitoring of water conservancy and hydropower
		Water level measurement of urban water supply and sewage treatment
		Liquid level measurement and control in industrial field
		Liquid level measuring for all kinds of open tank, water tank and liquid tank
Characteristics		Support liquid density modification, can be directly measured in different media
		Acquisition speed （0.1～10）S/A (S=second, A=acquisition )， settable freely
		RS485 communication、USB communication、（4~20）mA electrical current output , available
		Buttons pressed with magnetic induction pen, exempt from interference, not easy to damage
		Broad 5 digits LCD display, very clear for eye-catching
		Never Off-Line Communication technology, data bus can support 255 units of RS485 sub devices
		Signal-isolation technology , anti-electromagnetic and radio frequency interference technology
		Buttons pressed with magnetic induction pen, exempt from interference, not easy to damage
		Automatic temperature compensation technology, to reduce the error in harsh environment
		Zero Self-Stability technology, with temperature compensation automatically, stability reliable
Parameters		Measuring Range		0~1mH2O~200mH2O ( any scope within it )
		Accuracy grade		0.1 / 0.2 / 0.5
		Stability performance		<0.2% FS per year
		Output Signal		（4～20）mA（24V DC、two wire）、（1～5）V（24V DC，three wire）
		Communication		RS485（ compatible with MODBUS RTU and ANCN Free Protocol）
		Power supply mode		（10～30）V DC（power supply for communication ）
		Acquisition Speed		（0.1～10）S/A (S=second, A=acquisition)，default is 0.5 S/A， time is settable
		Operating temperature			-30℃～70℃
		Relative humidity			＜90%
		Barometric pressure			86-106KPa
		Others			Calibration reference operating temperature 20℃±2℃
		Medium Temperature			General temperature range	-40～120 ℃
					Wide temperature range	-60～150 ℃
		Display mode			five figures dynamic display and percentage bar chart
		Protection Degree			IP65
		Explosion-proof grade			ExdIIBT6 Gb
		Overload Pressure			1.5-3 times of measuring range, depending on the measuring range
		Software			AncnView-T analysis software ( with USB communication), can Export instrument data, automatic storage, automatic drawing temperature curve, can be exported to Excel form, read, print, save.
