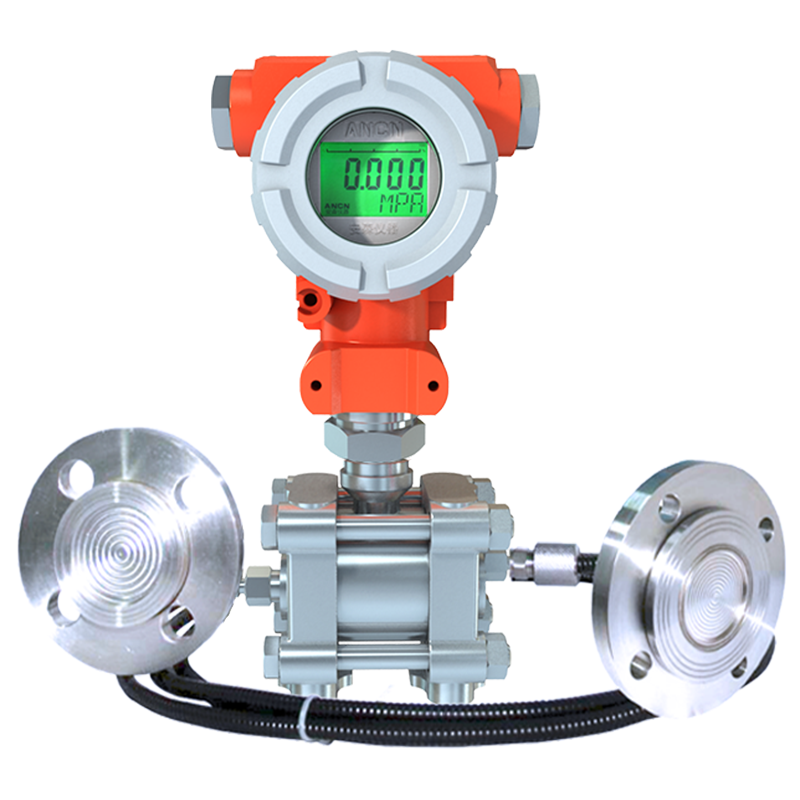

ACD-3151L Double Flange Differential-Pressure Level Meter

Short Description:

AncnView-T analysis software ( with USB communication), can Export instrument data, automatic storage, automatic drawing temperature curve, can be exported to Excel form, read, print, save.

Send email to us

Product Detail

Product Tags

Details

Model	Double Flange Differential-Pressure Level Meter ACD-3151L

Brief Introduction		ACD-3151L Double-Flange Differential-Pressure Liquid Level Transmitter is a new liquid level meter based on years of experience in advanced technology, independent research and development. It applies the most advanced ANCN micro power consumption technology and software compensation technology. Its key components and parts are all imported from E+H OEM brand. The instrument was assembled strictly with testing, aging, to ensure the quality of instrument. This product has the characteristics of advanced design, complete variety, easy installation, etc. In compare with traditional 3051, 1151 series of products in the installation, ACD-3151L can replace them directly, so it is a updating and substitute product to some of the old model products. In order to adapt to the continuous improvement of the level of domestic automation and development, the series of products is designed with function of pressure display on the spot, in addition to the design of small and delicate.
Application		Suitable to the medium With solid particles, suspended solids, precipitation, easy to crystallization, high temperature and other special viscous
		For the level measure of various of sealed oil tank, water tank, and liquid tank or processing tank
		Need to isolate Transmitter from the high temperature medium
		Suitable to be used for places where it request isolation the transmitter from the high temperature medium which would be changed or crystallized due to environment or temperature change
		the measurement process must be kept sanitary, and the corrosive or viscous liquid is strictly prohibited
Characteristics		High accuracy and stability
		Small size, light weight , strong vibration resistance
		Adjustable damping
		High performance of one way overload protection
		No movable components, less maintenance
		Unified structure for whole series instruments, strong interchangeable parts
		The diaphragm material to contact the media, can be selected
		Explosion proof structure, All-weather use
Parameters		Measuring Range	Differential Pressure：0～1kPa 0～4MPa
		Accuracy grade	0.075 / 0.1 / 0.2
		Power supply mode	（10～30）V DC（ for communication ）
		Acquisition Speed	（0.1～10）S/A (S=second, A=acquisition)，default is 0.2 S/A， time is settable
		Stability performance	<0.2% FS per year
		Output Signal	（4～20）mA（24V DC，two wire）
		Communication	HART / RS485
		Operating temperature		-30℃～70℃
		Relative humidity		＜90%
		Barometric pressure		86-106KPa
		Others		Calibration reference operating temperature 20℃±2℃
				0.05 accuracy requires operating temperature 0-50℃
		Medium Temperature		General temperature range		-40～120 ℃
				Wide temperature range(Flange type installation, filled with high temperature silicone oil)		-70～400 ℃
		Display mode		five figures dynamic display and percentage bar chart
		Protection Degree		IP65
		Explosion-proof grade		ExdIIBT6 Gb
		Overload Pressure(Overload pressure depends on the measure range)			Max. Hydrostatic Pressure：16MPa
					One way Max. Overload Pressure：16MPa
					Two-way Max. Overload Pressure：24MPa
		Software			AncnView-T analysis software ( with USB communication), can Export instrument data, automatic storage, automatic drawing temperature curve, can be exported to Excel form, read, print, save.
