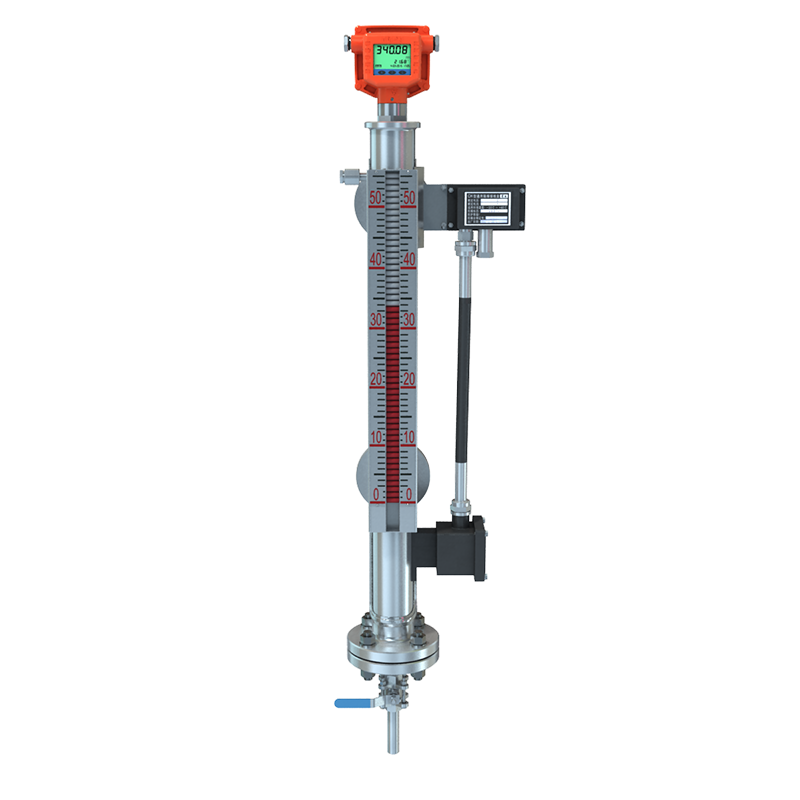

ACL Magnetic Flap Magnetostrictive Liquid Level Meter
Details
| Model | Magnetic flap magnetostrictive level meter ACL-1 | ||
|
|
|||
| Brief Introduction | ACL-1 Magnetic flap magnetostrictive level meter is high-tech intelligent level meter that we research and develop according to the requirements of industrial field, and we adopt the technology of sensor signal processing, mathematical modeling, information operation and intelligent communication technology accumulation. This gauge adopts the magnetoctrictive theory and has the advantages of high precision, long linear range and absolute position measurement, which can measure the tank liquid level accurately. Magnetic flap can help to intuitively reflect the real time level height inside. It also has the advantages of high precision, strong environment adaptability, high reliability, simple installation, convenient maintenance, which is widely used in petroleum, chemical, food, medicine, and other areas of the level measurement, and gradually replace the other traditional liquid level meter; it has been the first choice of the liquid level measuring instrument. | ||
| Application | various types of tanks used in oil storage and processing, such as flash tank, separator, etc. | ||
| liquid level measurement, control and monitoring field such as chemical industry, water treatment, pharmaceutical, electric power, papermaking, metallurgy, boiler, etc. | |||
| Characteristics | high and low temperature resistance, corrosion resistance, friction resistance, resistance to high pressure | ||
| resistance to dust, can measure steam, can install belt material without stop working | |||
| suitable for tank side mount, such as flash tank, separator, heating furnace level measurement | |||
| the backlit LCD display, easy to field observation at night | |||
| against lightning, anti-interference, explosion-proof design, used in flammable and explosive place | |||
| intelligent real-time self-tuning, accurate, stable and reliable | |||
| long service life, maintenance free, improve project quality and production efficiency | |||
| Parameters | Measuring Range | 50-20000mm(customized) | Hard pole: 50-4000mm |
| Soft pole: 4000-20000mm | |||
| Accuracy grade | 0.2grade±1mm、0.5grade±1mm、1grade±1mm | ||
| Linear error | ≤0.05％FS | ||
| Repeated accuracy | ≤0.002%FS | ||
| Power supply | 24VDC±10% | ||
| Output signa | 4-20mA | ||
| Communication | RS485(Modbus RTU) | ||
| Operating Environment | temperature -30℃～70℃ | ||
| relative humidity: ＜90% | |||
| barometric pressure 86-106KPa | |||
| Medium temperature | -40~85℃ | ||
| Working pressure | ordinary pressure to 10MPa | ||
| Medium density | 0.5-2.0g/cm3 | ||
| Protection Degree | IP65 | ||
| Explosion-proof grade | ExdIIBT4 Gb | ||
| Mounting mode | Side flange mounting | ||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
