Digital Pressure Controller ACD-104K
Details
|
Main Features |
φ100 standard dial plate |
|
Two control points can be set in site |
|
|
Two control points with relay output 220V/3A |
|
|
4～20mA output（optional） |
|
Main Parameters |
Measuring Range |
-0.1MPa～0～100MPa |
Accuracy |
0.25%F.S, 0.5%F.S |
|
Overload Capacity |
150%F.S |
Pressure Type |
G/D/A pressure |
|
|
Stability |
≤0.1%F.S /year |
Power Supply |
24V DC/220V AC |
|
|
Display Mode |
4 Digits LED |
Display Range |
-1999～9999 |
|
|
Response time |
<30ms |
Environmental Temperature |
-30℃ ～80℃ |
|
|
Relative Humidity |
0～90% |
Medium temperature |
-40℃ ～150℃ |
|
|
Note：cooling element shall be used when medium temperature exceeds 80℃ |
||||

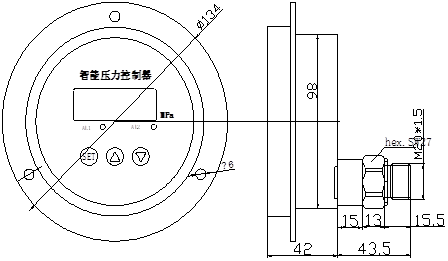

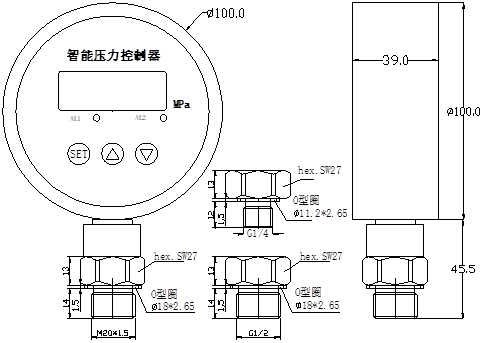

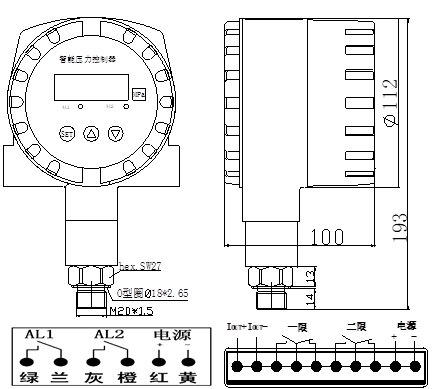

Overall Dimensions (Unit: mm)
Selection Guide
|
Selection Guide of ACD-104K Digital Pressure Controller |
||||
|
ACD-104K |
||||
|
Installation Mode |
J |
φ100 Radial |
||
|
Z |
φ100 Axial |
|||
|
B |
Ex-proof case |
|||
|
Thread Connection |
G12 |
G1/2 |
||
|
M20 |
M20*1.5 |
|||
|
Power Supply |
D |
24V DC |
||
|
A |
220V AC |
|||
|
Measuring Range |
According to customer’s request |
|||
