Digital Pressure Controller ACD-105K
Details
|
Main Features |
φ100 standard dial plate |
|
Four control points with relay output 220V/3A |
|
|
Four control points can be set in site, free configuration |
|
|
4～20mA output（optional） |
|
|
RS485 output and networking（optional） |
|
Main Parameters |
Measuring Range |
-0.1MPa～0～100MPa |
Accuracy |
0.25%F.S, 0.5%F.S |
|
Overload Capacity |
150%F.S |
Pressure Type |
G/D/A pressure |
|
|
Stability |
≤0.1%F.S /year |
Power Supply |
24V DC/220V AC |
|
|
Display Mode |
4 Digits LED |
Display Range |
-1999～9999 |
|
|
Response time |
<30ms |
Environmental Temperature |
-30℃ ～80℃ |
|
|
Relative Humidity |
0～90% |
Medium temperature |
-40℃ ～150℃ |
|
|
Note：cooling element shall be used when medium temperature exceeds 80℃ |
||||

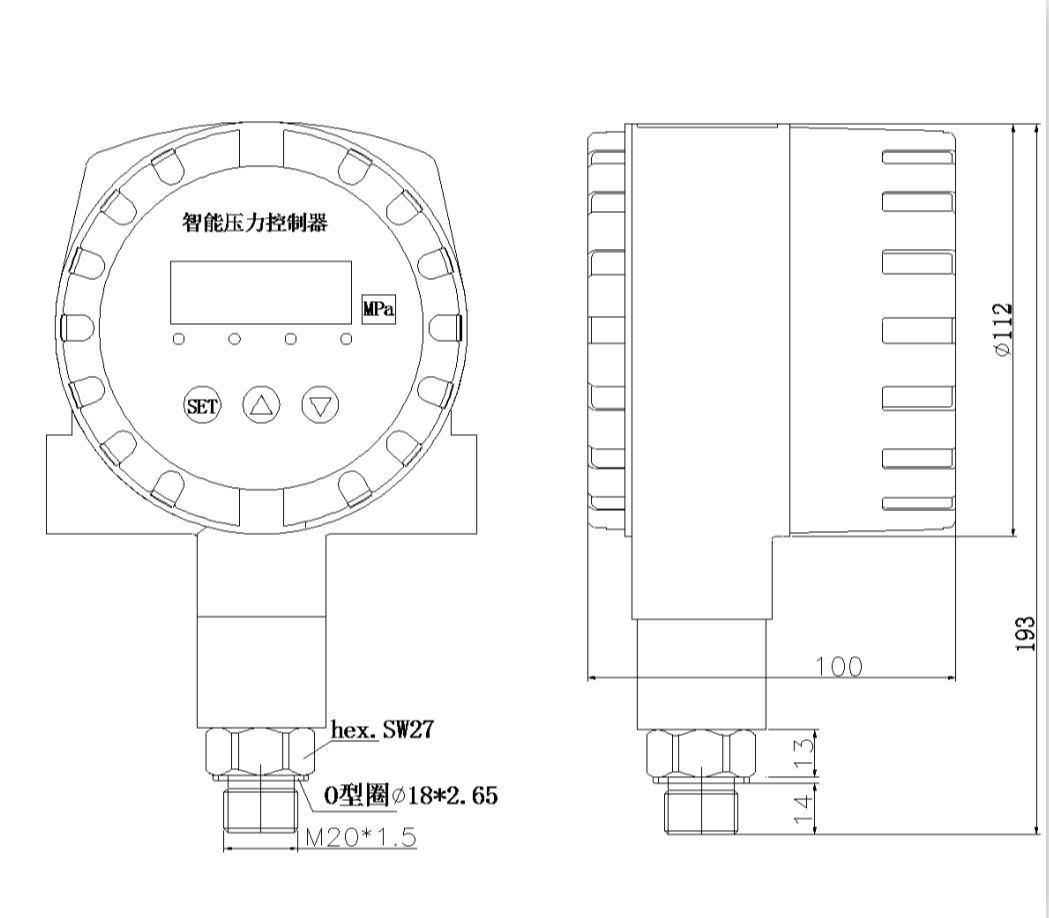

Overall Dimensions (Unit: mm)
Selection Guide
|
Selection Guide of ACD-105K Digital Pressure Controller |
|||||
| ACD-105K | |||||
| InstallationMode | J | φ100 Radial | |||
| B | Ex-proof case | ||||
| Output | I | 4～20mA | |||
| R | RS485 | ||||
| Thread Connection | G12 | G1/2 | |||
| M20 | M20*1.5 | ||||
| Power Supply | D | 24V DC | |||
| A | 220V AC | ||||
| Measuring Range | According to customer’s request | ||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
Product Advantages Introduction
With ACD-105K digital pressure controller, you can easily measure, display and control the pressure of fluid medium on site. The controller uses advanced technology to ensure accurate real-time monitoring of pressure levels, providing you with the data necessary to make informed decisions and optimize processes.
One of the prominent features of the ACD-105K digital pressure controller is that it can output (4-20) mA and RS485 signals. This makes it incredibly versatile as it integrates seamlessly with a wide variety of devices and systems. Whether you need to connect it to a control system or transfer data digitally, this controller has you covered.
ACD-105K digital pressure controller is suitable for various industries, including hydropower, petroleum, chemical industry, machinery, hydraulic pressure, etc. Its rugged construction and reliable performance make it suitable for challenging environments and demanding applications. Rest assured, this controller is built to withstand harsh conditions and deliver consistent results.
Ease of use is another key aspect of the ACD-105K digital pressure controller. It has a user-friendly interface and intuitive controls that allow for easy configuration and adjustments. Plus, the bright, clear display ensures easy reading in any lighting condition.
In terms of accuracy, the ACD-105K digital pressure controller excels. Advanced pressure sensing technology guarantees precise measurements, ensuring you get the most accurate data at your fingertips. Additionally, the controller's control features allow you to easily set pressure limits and thresholds, giving you complete control over the system.
