Digital Pressure Gauge ACD-101
Details
|
Main Features |
φ100 standard instrumentation installation |
|
Whole body stainless steel construction |
|
|
Parameter correction function, the site can adjust the instrument zero and error value |
|
|
4 ~ 20mA, optional RS485 output |
|
Main Parameters |
Measuring Range |
-0.1MPa～0～100MPa |
Accuracy |
0.25%F.S |
|
Overload Capacity |
150%F.S |
Pressure Type |
Gauge pressure |
|
|
Stability |
≤0.1%F.S /year |
Power Supply |
24V DC/220V AC |
|
|
Display Mode |
5 Digits LED |
Display Range |
-1999～9999 |
|
|
Environmental Temperature |
-20℃~70℃ |
Relative Humidity |
0~90% |

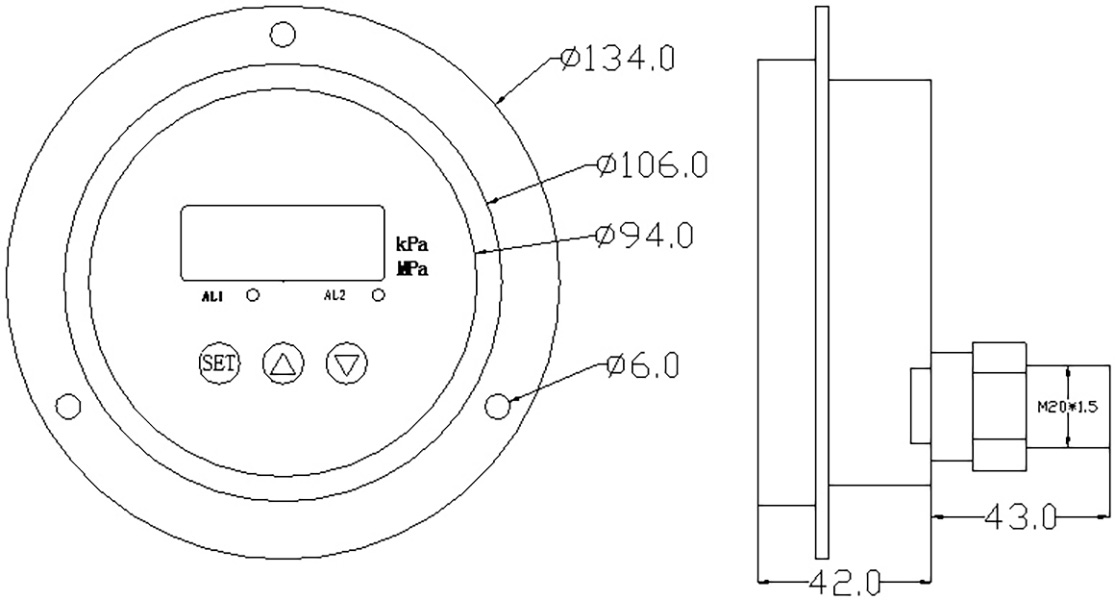

Overall Dimension
Selection Guide
|
Selection Guide of ACD-101 Digital Pressure Gauge |
||||
| ACD-101 | ||||
| Installation
Mode |
J | Radial | ||
| Z | Axial | |||
| Output | I | 4～20mA | ||
| R | RS485 | |||
|
Thread Connection |
G12 | G1/2 | ||
| G14 | G1/4 | |||
| M20 | M20*1.5 | |||
| Measuring Range | According to customer’s request | |||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
Product Advantages Introduction
With its user-friendly interface and intuitive controls, the ACD-101 digital pressure gauge removes any complexity associated with pressure measurement. Its clear, vivid display makes pressure readings easy, ensuring accurate results every time. Whether you're a seasoned pro or new to the field, the meter is extremely user-friendly and allows for seamless operation and adjustments.
The ACD-101 digital pressure gauge has been engineered to meet the highest safety standards. Its strong construction and durable materials ensure it can withstand the harsh conditions common in industries under extreme stress, such as hydropower, petroleum and machinery. Even in the harshest environments, you can rely on this meter to provide accurate readings, improving the safety and efficiency of your operations.
This multifunctional instrument can be widely used in various industries. In hydropower, it is used to measure water pressure in dams, turbines and pipelines, enabling effective monitoring and maintenance of these critical assets. Water systems benefit from the accuracy and reliability of the ACD-101 Digital Pressure Gauge to ensure optimum water pressure for both domestic and commercial use.
The petroleum and chemical industries rely on accurate pressure measurement for safe and efficient operations. With its exceptional accuracy, the ACD-101 digital pressure gauge plays a key role in monitoring pressure in pipelines, storage tanks and refining processes, thereby minimizing the risk of accidents and ensuring compliance with industry standards.
Mechanical and hydraulic systems often require precise pressure monitoring to ensure smooth operation and prevent potential failures. The ACD-101 digital pressure gauge is an invaluable tool in these industries, enabling real-time pressure measurement and assisting with preventive maintenance, increasing productivity and reducing downtime.
