Digital Pressure Gauge ACD-118

Short Description:

ACD-118 Digital pressure gauge is fully electronic structure with battery powered; display value is clear and accurate. It has peak value holding, percentage display, environmental temperature measurement and other functions. Widely used in hydropower, tap water, petrochemical, machinery, hydraulic and other industries, the pressure of the fluid media for measurement and display.

Send email to us

Product Detail

Product Tags

Details

Main Features	Double screen display with high resolution
	Main screen five digits real-time display
	Sub-screen optional maximum, minimum and peak values, ambient temperature display
	Graphical pressure percentage and battery power display
	Pressure overload warning to prevent damage
	White back light for night
	10 international pressure units
	Sampling rate 30～100 times/s
	Automatic shutdown function to save battery life
	Accuracy 0.1%F.S and 0.05%F.S with storage function (capacity 260,000 pieces)

Main Parameters	Measuring Range	-0.1MPa～0～100MPa	Accuracy	0.2%F.S、0.5%F.S
	Overload Capacity	150%F.S	Pressure Type	G/A/D Pressure
	Stability	≤0.1%F.S /yesr	Battery	3.6V DC
	Display Mode	5 Digits LCD	Display Range	-1999～9999
	Environmental Temperature	-20℃~70℃	Relative Humidity	0~90%
	Note：cooling element shall be used when medium temperature exceeds 80℃

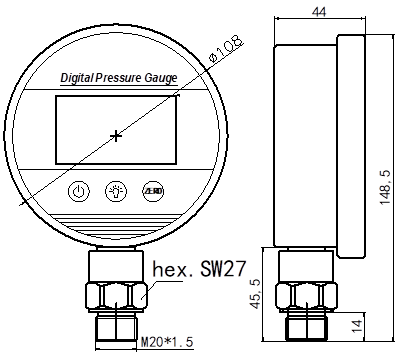

Overall Dimensions (Unit: mm)

Selection Guide

Selection Guide of ACD-118 Digital Pressure Gauge
ACD-118
Installation Mode	J	Radial
	Z	Axial
Thread Connection		G12	G1/2
		G14	G1/4
		M20	M20*1.5
Measuring Range			According to customer’s request
