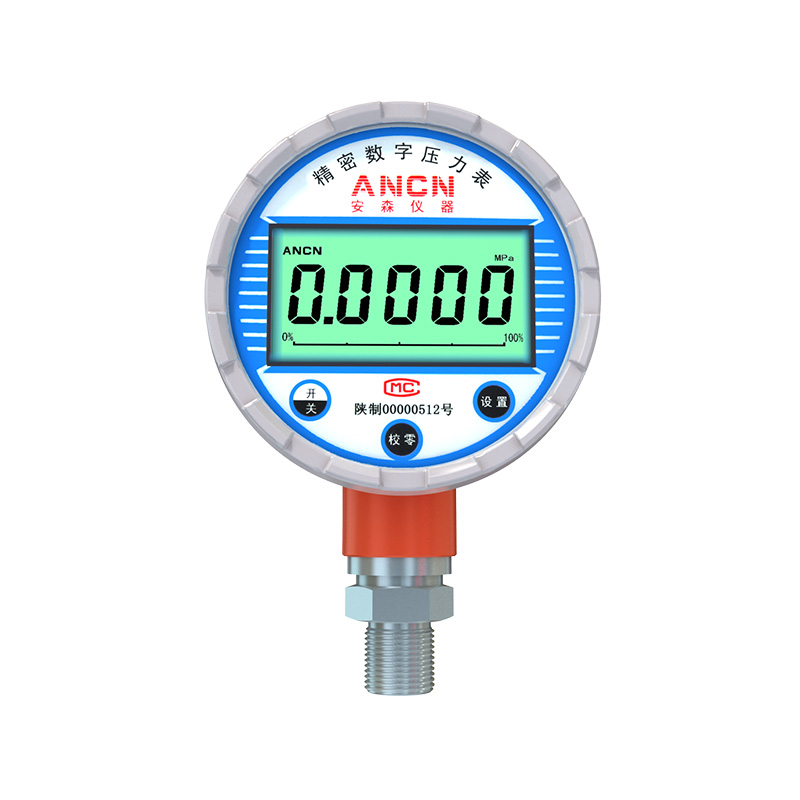

Digital Pressure Gauge ACD-200
Details
| Main Features | 11 units display, set free | |||
| open design battery, easy to replace | ||||
| magnetic induction button, eliminate interference and not easy to damage | ||||
| five figures display on big LCD screen | ||||
| pressure percentage bar charts shows | ||||
| automatic temperature compensation technology | ||||
| zero stable technology, increase the stability of the instrument | ||||
| Main Parameters | Units | kPa, MPa, psi, bar, mbar and so on | ||
| Measuring Range | -0.1MPa～0～260MPa | Accuracy | 0.5%F.S, 0.2%F.S, 0.1%F.S, 0.05%F.S | |
| Power supply | 3.6V DC | Sampling Rate | （0.25～10）s/time | |
| Overload Capacity | 150%F.S | Stability | ≤0.1%F.S /year | |
| Environmental Temperature | -30℃～70℃ | Relative Humidity | 0～90% | |
| IP Grade | IP65 | Ex-proof Grade | ExiaIICT4 Ga | |

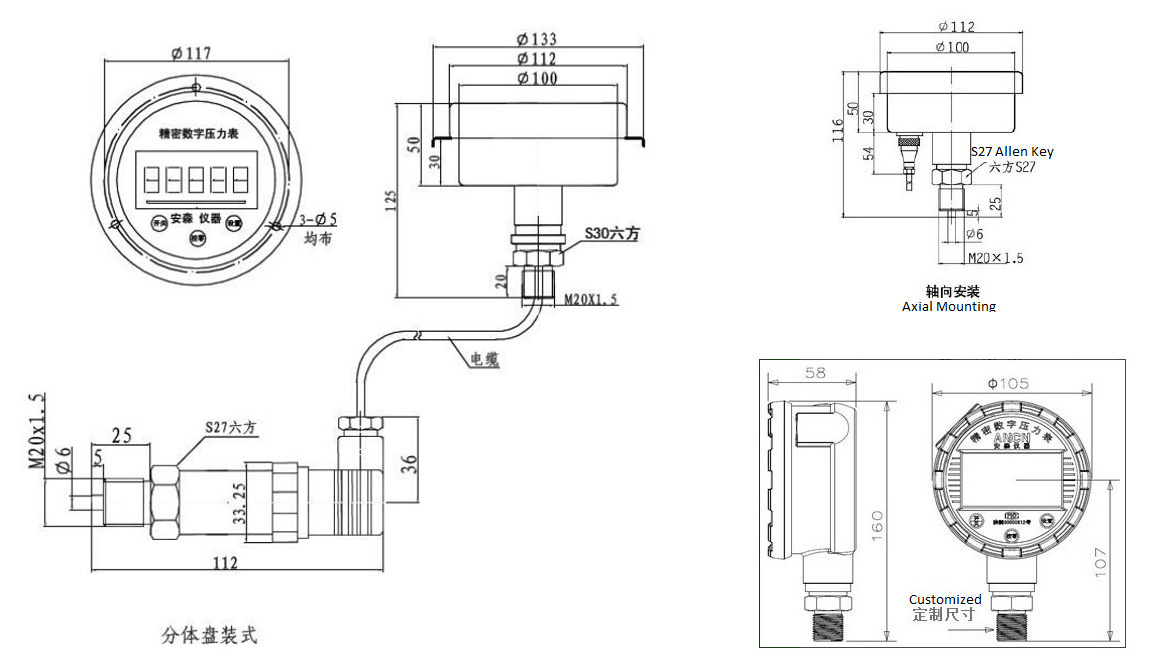

Overall Dimension
(unit: mm)
Selection Guide
|
Selection Guide of ACD-200 Digital Pressure Gauge |
||||||
| ACD-200 | ||||||
| Structure | Y | Integrated Type | ||||
| F | Split Type | |||||
| Installation
Mode |
J | Radial | ||||
| Z | Axial | |||||
| P | Panel | |||||
| Accuracy Grade | B | 0.05 | ||||
| C | 0.1 | |||||
| D | 0.2 | |||||
| E | 0.5 | |||||
| Threaded Connection | According to customer’s request | |||||
| Measuring Range | According to customer’s request | |||||
Product Advantages
1. Intelligent, stable and reliable
2. High accuracy: 0.05%F.S 0.1%F.S 0.2%F.S 0.5%F.S
3. High speed acquisition value:
*Large LCD screen
Pa, kPa, MPa, psi, bar, mbar
*11 kinds of unit display
*Easy to read
4. Explosion-proof design
5. Imported chip
6. Open battery compartment
7. Easy to change
8. Display texture: Stainless steel metal nameplate
9. Magnetic pen induction key: Free from interference and breakage-proof
10. Intuitive and easy to understand:Pressure range percentage bar profile
11. The whole explosion-proof from inside to outside, safe and reliable
12. Corrosion resistance, impact resistance and vibration resistance,Meet the needs of different places and environments
13. Meet different precision requirements
14. The whole explosion-proof from inside to outside, safe and reliable
Application
1. Meet the measurement and detection of various industries.
2. Products are widely used in Petrochemical, environmental protection, hydropower, machinery, metallurgy, papermaking, medical, laboratory, etc.
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
