Digital Pressure Gauge ACD-200mini
Details
|
Main Features |
11 units display, set free |
|
60mm dial plate, small and portable |
|
|
Magnetic induction button, eliminate interference and not easy to damage |
|
|
Five four display on big LCD screen |
|
|
Pressure percentage bar charts shows |
|
|
Automatic temperature compensation technology |
|
|
Zero stable technology, increase the stability of the instrument |
|
Main Parameters |
Units |
kPa, MPa, psi, bar, mbar and so on |
||
|
Measuring Range |
0～100MPa |
Accuracy |
0.1%F.S、0.2%F.S、0.5%F.S |
|
|
Power supply |
3.6V DC |
Sampling Rate |
（0.25～10）s/time |
|
|
Overload Capacity |
150%F.S |
Stability |
≤0.1%F.S /year |
|
|
Environmental Temperature |
-30℃～70℃ |
Relative Humidity |
0～90% |
|
|
IP Grade |
IP65 |
Ex-proof Grade |
ExiaIICT4 Ga |
|

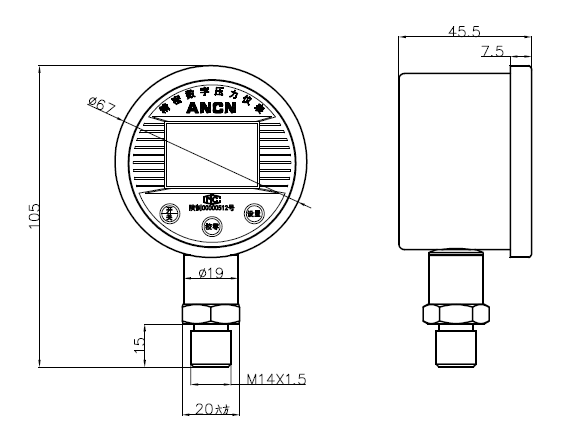

Overall Dimension
Selection Guide
|
Selection Guide of ACD-200mini Digital Pressure Gauge |
|||||
|
ACD-200mini |
|
||||
|
Installation Mode |
J |
Radial |
|||
|
Accuracy Grade |
C |
0.1 |
|||
|
D |
0.2 |
||||
|
E |
0.5 |
||||
|
Threaded Connection |
According to customer’s request |
||||
|
Measuring Range |
According to customer’s request |
||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
