Digital Pressure Gauge ACD-201
Details
|
Main Features |
Sampling rate 0.25 ~ 10 seconds per time |
|
Never drop communication equipment, the trunk supports 255 equipment |
|
|
Super power management technology, battery life is 3-5 years |
|
|
Signal isolation technique, anti-electromagnetic interference and FRI technique |
|
|
Magnetic induction button design and not easy to damage |
|
|
Five figures display on big LCD screen |
|
|
Pressure percentage bar charts shows |
|
|
Automatic temperature compensation technology to reduce error |
|
|
Zero stable technology, increase the stability of the instrument |
|
Main Parameters |
Units |
kPa, MPa, psi, bar, mbar and so on |
||
|
Measuring Range |
-0.1MPa～0～260MPa |
Accuracy |
0.5%F.S, 0.2%F.S 0.1%F.S, 0.05%F.S |
|
|
Power Supply |
10V～30V DC |
Display Mode |
5 digits LCD |
|
|
Overload Capacity |
150%F.S |
Stability |
≤0.1%F.S /year |
|
|
Output |
（4～20）mA/ RS485 |
Environmental Temperature |
-30℃～70℃ |
|
|
Media Temperature |
-40℃～150℃ |
Relative Humidity |
0～90% |
|
|
IP Grade |
IP65 |
Ex-proof Grade |
ExiaIICT4 Ga |
|

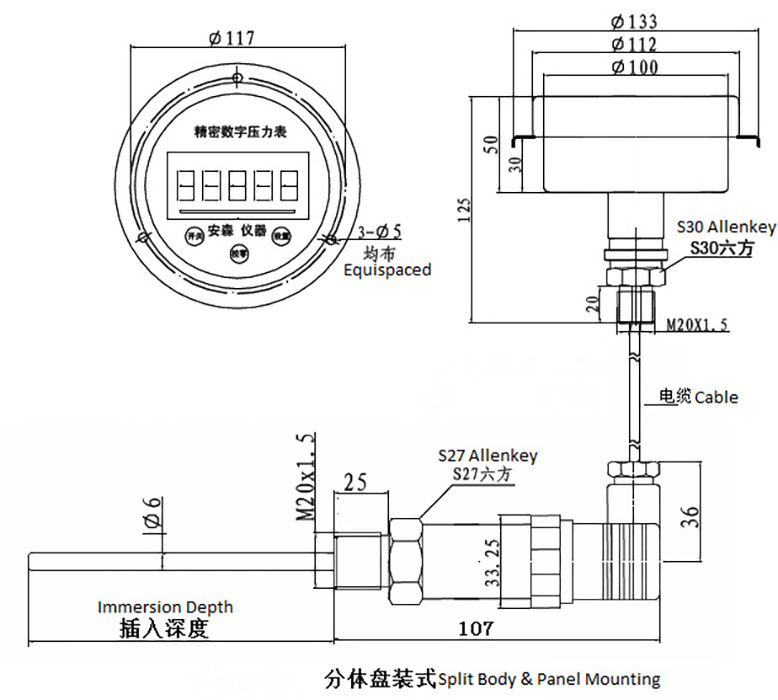

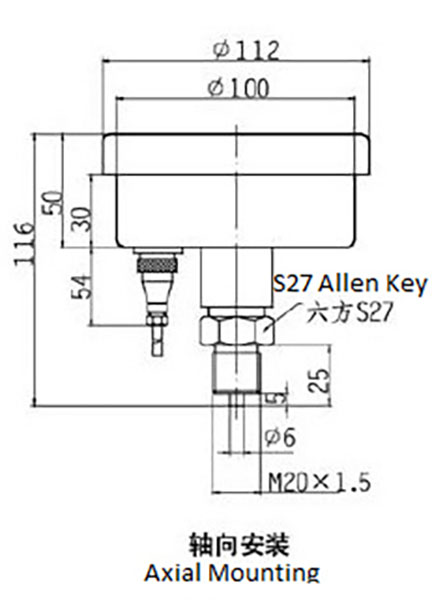

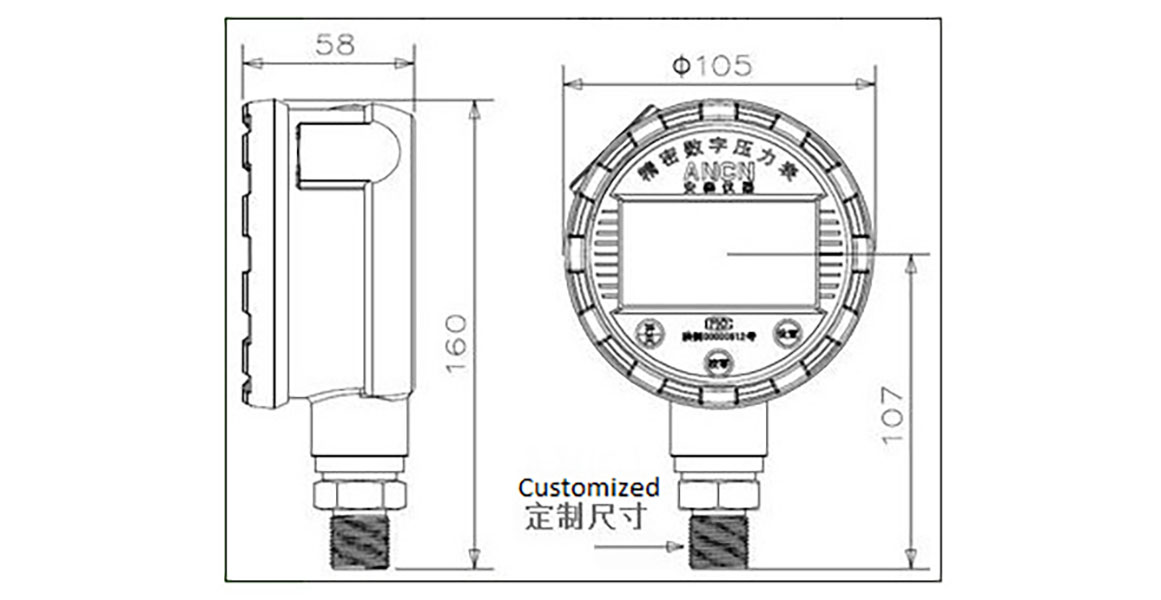

Overall Dimension
Selection Guide
|
Selection Guide of ACD-201 Digital Pressure Gauge |
||||||
| ACD-201 | ||||||
| InstallationMode | J | Radial | ||||
| Z | Axial | |||||
| P | Panel | |||||
| Accuracy Grade | B | 0.05 | ||||
| C | 0.1 | |||||
| D | 0.2 | |||||
| E | 0.5 | |||||
| Output | I | 4～20mA | ||||
| R | RS485 | |||||
| E | 4～20mA + RS485 | |||||
| Threaded Connection | According to customer’s request | |||||
| Measuring Range | According to customer’s request | |||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
Product Advantages Introduction
The ACD-201 Digital Pressure Gauge is designed to revolutionize the way you monitor and analyze pressure data. Its cutting-edge technology enables teleportation, enabling seamless communication with computers. By connecting the meter to a PC using the provided software, you can easily save, process and export data for further analysis and reporting.
This innovative device is ideal for a variety of industries where digitally communicated pressure acquisition is critical. Whether you work in manufacturing, engineering or research, the ACD-201 can meet your specific needs. Say goodbye to the tedious process of manual data logging and transferring it to a computer - with this digital manometer, your data is instantly transferred and ready for real-time analysis.
The ACD-201 digital pressure gauge features a sleek, user-friendly interface that offers unparalleled ease of use and efficient data management. The clear and intuitive display allows for quick and accurate readings, ensuring you always have accurate information. No more squinting at small displays or wrestling with complicated settings - this pressure gauge was designed with your convenience in mind.
In addition, the ACD-201 digital pressure gauge is equipped with an advanced data saving function to ensure that important information will not be lost. Whether for short-term monitoring or extended data collection, the meter reliably stores and protects your data so you can refer to it when you need it. Its powerful data processing capabilities enable you to perform in-depth analysis and generate comprehensive reports for informed decision-making.
Furthermore, the ACD-201 digital pressure gauge guarantees superior quality and reliability. Manufactured with high-quality materials and state-of-the-art technology, this meter is able to meet the demands of a wide range of industrial environments. Its durability ensures long-lasting performance, saving you time and money on frequent replacements.
