Digital Pressure Switch ACD-131K
Details
|
Main Features |
Fast switch speed, 320times/s |
|
Span zoom and shift |
|
|
Preset switch value and delay switch action |
|
|
Optional switch out function |
|
|
Luminous diode for switching point node |
|
|
Button adjustment and field setting of parameters, easy to operate |
|
|
2 lines switch output, load capacity 1.2A |
|
|
4～20 mA output |
|
|
330°rotary display window |
|
Main Parameters |
Control Range |
-0.1MPa ～0～100MPa |
Control Accuracy |
0.5%F.S |
|
Stability |
≤0.1%F.S /year |
Display Accuracy |
±0.1%F.S |
|
|
Display Mode |
4 digits LED |
Display Range |
-1999~9999 |
|
|
Power Supply |
24V±20% |
Max. Consumption |
< 1W |
|
|
Loading Capacity |
<24V 1.2A |
Switch Type |
PNP/NPN |
|
|
Response Time |
≤5ms |
Switching Life |
>1 million times |
|
|
IP Grade |
IP65 |
Media Temperature |
-40℃ ～150℃ |
|
|
Note：cooling element shall be used when medium temperature exceeds 80℃ |
||||

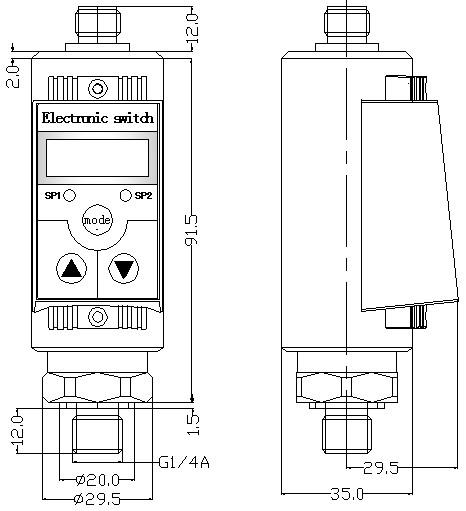

Overall Dimension
(Unit: mm)
Selection Guide
|
Selection Guide of ACD-131K Digital Pressure Switch |
|||||
|
ACD-131K |
|
||||
|
Display Part |
X |
Rotate |
|||
|
N |
No Rotate |
||||
|
Electrical Connection |
H |
One Analog (Hirschmann) |
|||
|
M |
Two way switch + One Analog (M12-5P) |
||||
|
Thread Connection |
G12 |
G1/2 |
|||
|
G14 |
G1/4 |
||||
|
M20 |
M20*1.5 |
||||
|
Switch Type |
P |
PNP |
|||
|
N |
NPN |
||||
|
Measuring Range |
According to customer’s request |
||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
