Digital Pressure Transmitter ACD-112mini
Details
|
Main Features |
Wide range coverage |
|
High level of protection, high precision, good stability, high reliability |
|
|
Digital LCD display |
|
|
Impact and shock resistance, applicable to industrial site |
|
|
Intrinsically safe explosion-proof |
|
|
Whole body SS structure，compatible with different media |
|
Main Parameters |
Measuring Range |
-0.1MPa～0～100MPa |
Accuracy |
0.25%F.S |
|
Overload Capacity |
150%F.S |
Stability |
≤0.1%F.S /year |
|
|
Power Supply |
18V～36V DC |
IP Grade |
IP65 |
|
|
Relative Humidity |
0~90% |
Environmental Temperature |
-30℃～80℃ |
|
|
Media Temperature |
-40℃～150℃ |
Display |
4 digits LCD |

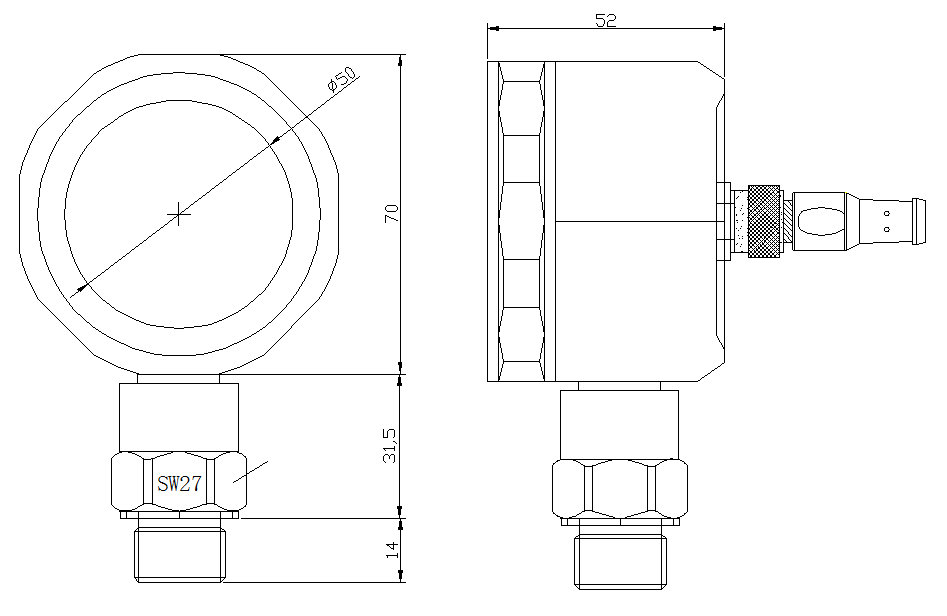

Overall Dimension
(Unit: mm)
Selection Guide
|
Selection Guide of ACD-112mini Digital Pressure Transmitter |
|||
| ACD-112mini | |||
| Output | I | 4～20mA | |
| R | RS485 | ||
| H | 4～20mA + Hart | ||
| Thread Connection | G12 | G1/2 | |
| M20 | M20*1.5 | ||
| Measuring Range | According to customer’s request | ||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
