Digital Pressure Transmitter ACD-302

Short Description:

ACD-302 Digital pressure transmitter not only has the transmitter (4~20) mA analog signal output function, but also can increase the RS485 digital communication function. It can cooperate with the communication software to collect data directly with the computer or other communication interfaces, save, process and output the test data. It is widely used in the field or in harsh environment to replace the data collection of imported pressure transmitter.

Send email to us

Product Detail

Product Tags

Details

Main Features	0.1 ~ 10Hz sampling rate
	Dual functions of RS485 and (4~20)mA signal output, can be set freely
	Never drop communication equipment, the trunk support 255sets of RS485 counter equipment
	Signal isolation technique, anti-electromagnetic interference and RFI technique
	Zero stable and temperature compensation technology
	Output signal can move freely within the range

Main Parameters	Units	kPa, MPa, psi, bar, mbar and so on
	Measuring Range	-0.1MPa～0～260MPa	Accuracy	0.5%F.S, 0.2%F.S, 0.1%F.S
	Output	（4～20）mA, RS485	Power supply	10V～30V DC
	Overload Capacity	150%F.S	Stability	≤0.2%F.S /year
	Display Mode	4 Digits LCD	Media Temperature	-40℃～150℃
	Environmental Temperature	-30℃~70℃	Relative Humidity	0~90%
	IP Grade	IP67	Ex-proof Grade	ExdIIBT6 Gb

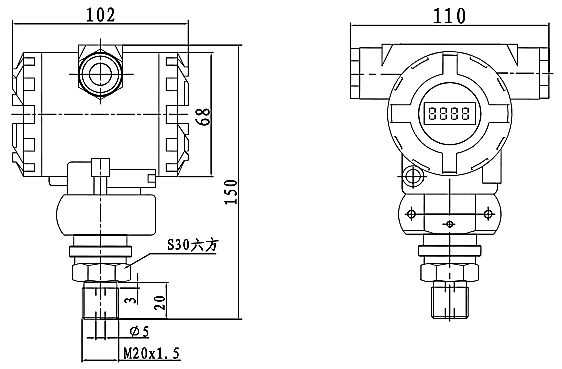

Overall Dimension

(Unit: mm)

Selection Guide

Selection Guide of ACD-302 Digital Pressure Transmitter
ACD-302
Accuracy	C	0.1
	D	0.2
	E	0.5
Output		C	4～20mA
		R	RS485
		E	4～20mA + RS485
		H	4～20mA + HART
Thread Connection				According to customer’s request
Measuring Range					According to customer’s request
