Digital Temperature Controller ACT-104K

Short Description:

ACT-104K digital temperature controller is a smart digital displayed product for temperature testing and controlling. It integrates functions of measuring,display,output and control all in one. It has a complete electronic structure, it equipped with PT100 sensor which transmit signal by A/D, output is one way analog value and 2 ways switching value. It is widely used in water supply, petroleum, chemical engineering, machinery, hydraulic industry etc., to display and control the temperature of the fluid medium in site.

Send email to us

Product Detail

Product Tags

Details

Main Features	Φ100 standard dial plate.
	Two switching point with electronic relay, output is 220V/3A.
	4~20mA output signal (optional)
	Two control points can be set in site.
Main Parameters	Measuring Range	-200℃~500℃	Accuracy	0.2%F.S, 0.5%F.S
	Display Accuracy	±0.1%F.S	Sensor	PT100
	Stability	≤0.2%F.S /year	Power Supply	24V DC/220V AC
	Display Mode	Four Digits LED	Display Range	-1999~9999
	Responsive Time	＜30ms	Operating Temperature	-30℃~80℃
	Relative Humidity	0~90%	Connector Material	Stainless Steel

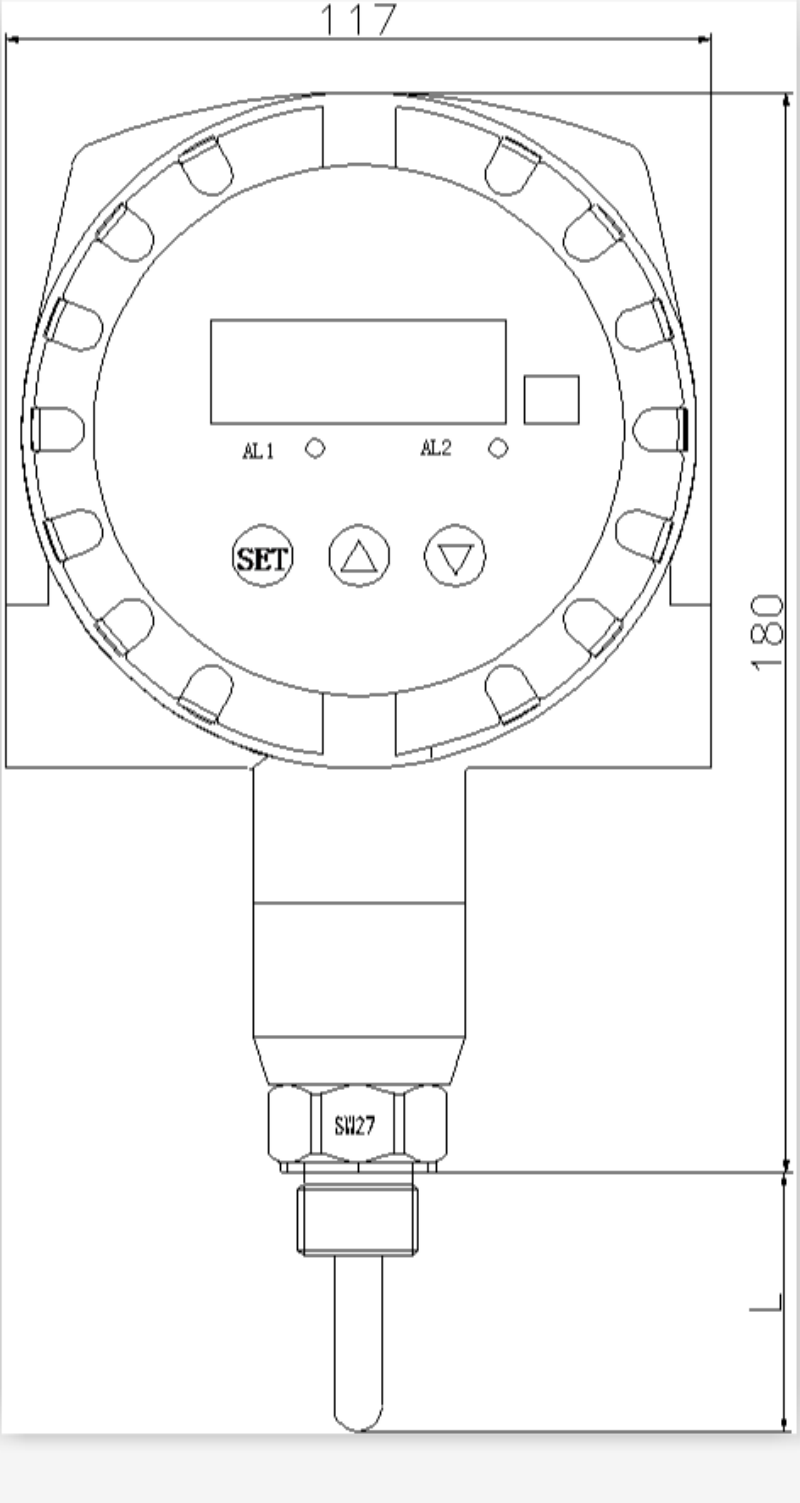

Overall dimensions(Unit:mm)

Selection Guide

Selection Guide of ACT-104K Digital Temperature Controller
ACT-104K
Installation Type	J	Radial
	Z	Axial
	B	Anti-explosion Shell
Threaded Connection		G12	G1/2
		M20	M20*1.5
		M27	M27*2
Power Supply			D	24V DC
			A	220V AC
Measuring Range					According to customer’s request
Insert Depth						L...mm

Our Advantages

1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction

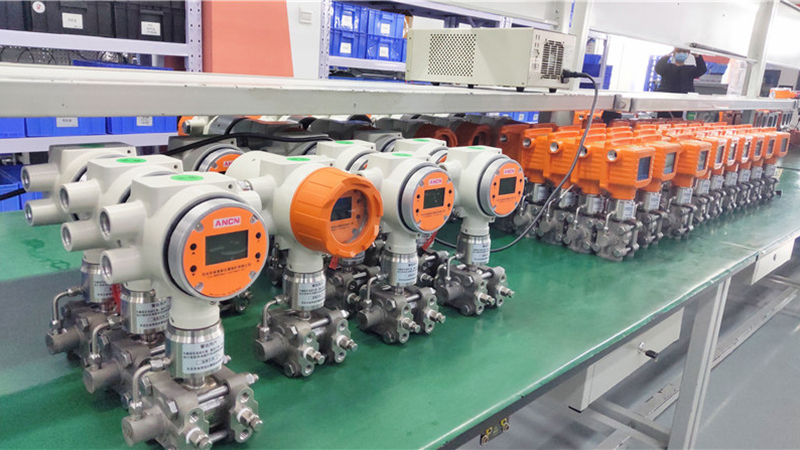

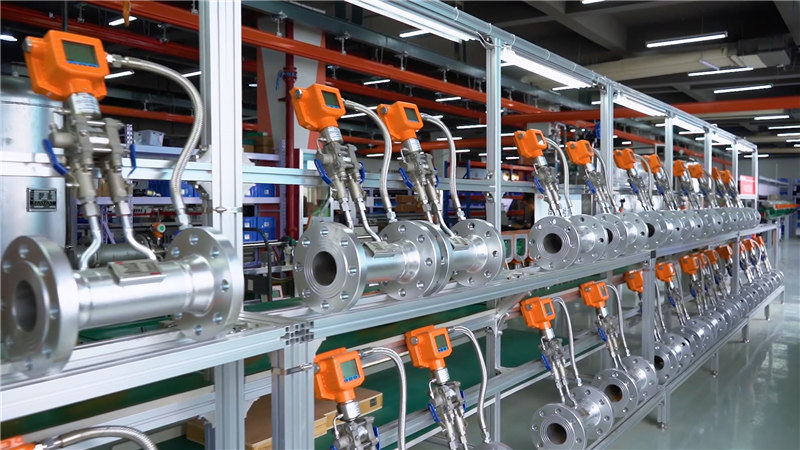

*Production system area of 4000 square meters
