Digital Temperature Gauge ACT-200

Short Description:

ACT-200 digital temperature gauge adopts the most advanced micro power consumption device and perfect software technology, can meet the needs of temperature acquisition in the places such as corrosion, impact and vibration. It is suitable for all-weather collection in the field or in harsh environment where external power supply cannot be provided. It can meet the demand of high-precision collection in laboratory and industrial field and can replace the traditional pointer temperature gauge.

Send email to us

Product Detail

Product Tags

Details

Main Features	² Epoxy resin sealing materials, anti-vibration, temperature resistant ,instinctive safety and explosion-proof.
	² Acquisition speed 1~20Hz, settable freely.
	² Power supply battery is of development of design, easy to replace any time.
	² Broad screen of 5 digits LCD, easy to be sigh catching.
	² Display with temperature percentage bar chart, easy to understand.
	² Adopts Pressure spring type mechanism, the temperature sensitivity is high, the instrument response speed is fast.
	² Zero Self-stability technology , ensure the stability of instrument.
	² Buttons pressed with magnetic induction pen, exempt from interference, not easy to damage.
Main Parameters	Display Units	℃、℉
	Measuring Range	Thermo couple: (0~1600)℃	Accuracy	0.2%F.S0.5%F.S
		Thermo resistance: (-200~500) ℃
	Battery	3.6V DC	Stability	≤0.3%F.S /year
	Environmental Temperature	-30℃~70℃	Relative Humidity	0~90%
	Protection Degree	IP65	Explosion-Proof	ExiaIICT4 Ga

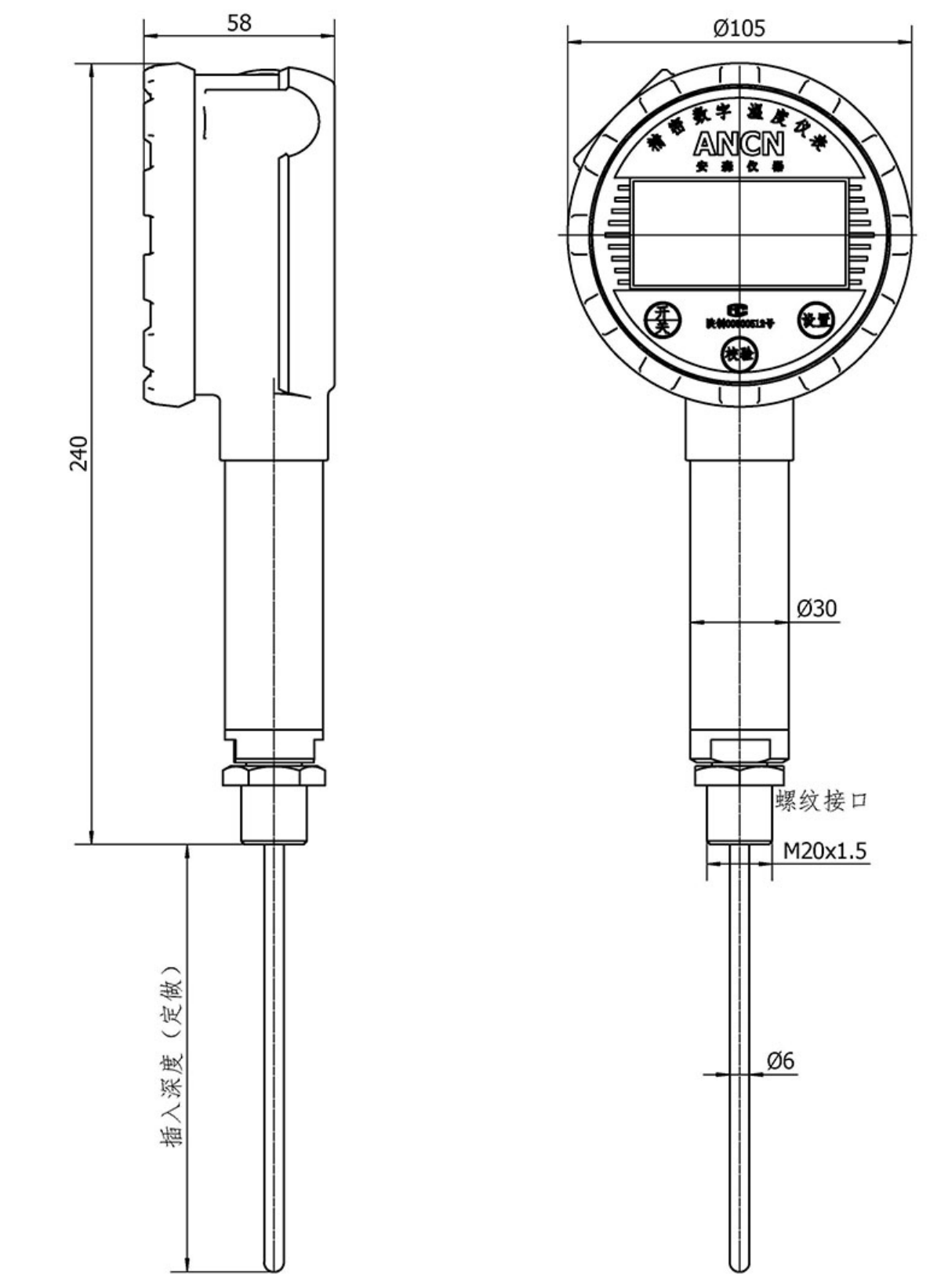

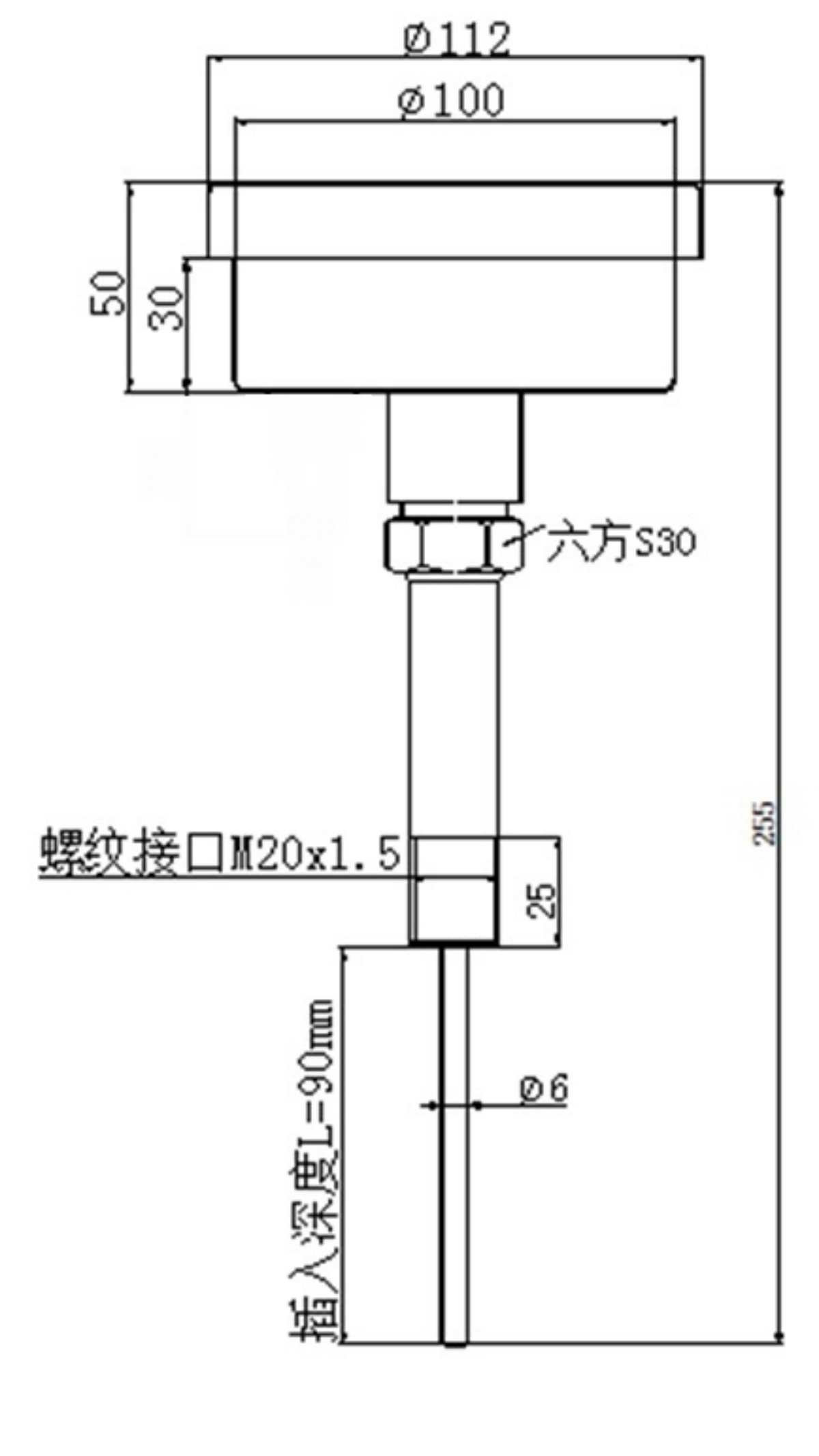

Overall dimensions(Unit:mm)

Selection Guide

Selection Guide of ACT-200 Digital Temperature Gauge
ACT-200
Structure	Y	Integrated Type
	F	Split Type
InstallationMode		J	Radial
		Z	Axial
		P	Panel
Accuracy Grade			D	0.2
			E	0.5
Threaded Connection				According to customer’s request
Measuring Range					According to customer’s request
Insert Depth						L...mm
