Digital Temperature Gauge ACT-201

Short Description:

ACT-201 digital temperature gauge is on the basis of the local display added to the remote transmission of the communication module, with the communication software can directly communicate with the computer, the detection data to save, processing and report output. It is widely used in the data collection of laboratory temperature measurement.

Send email to us

Product Detail

Product Tags

Details

Main Features	² Epoxy resin sealing materials, anti-vibration, temperature resistant ,instinctive safety and explosion-proof.
	² Buttons pressed with magnetic induction pen, exempt from interference, not easy to damage.
	² Broad screen of 5 digits LCD, easy to be sigh catching.
	² Meets the acquisition requirements in places of corrosion, impact, vibration , and other harm environments.
	² Adopts Pressure spring type mechanism, the temperature sensitivity is high, the instrument response speed is fast.
	² Display with temperature percentage bar chart, easy to understand.
	² Power supply battery with development of design, convenient for replacing at any time.
	² Acquisition speed 1~20Hz, settable freely.
Main Parameters	Display Units	℃, ℉
	Measuring Range	Thermo couple: (0~1600)℃	Accuracy	0.2%F.S 0.5%F.S
		Thermo resistance: (-200~500) ℃
	Output	(4~20)mA	Communication	RS485, USB
	Stability	≤0.3%F.S /year	Power Supply	Built-in 3.6V DC
				External (10~30)V DC
	Environmental Temperature	-30℃~70℃	Relative Humidity	0~90%
	Protection Degree	IP65	Explosion-Proof	ExiaIICT4 Ga

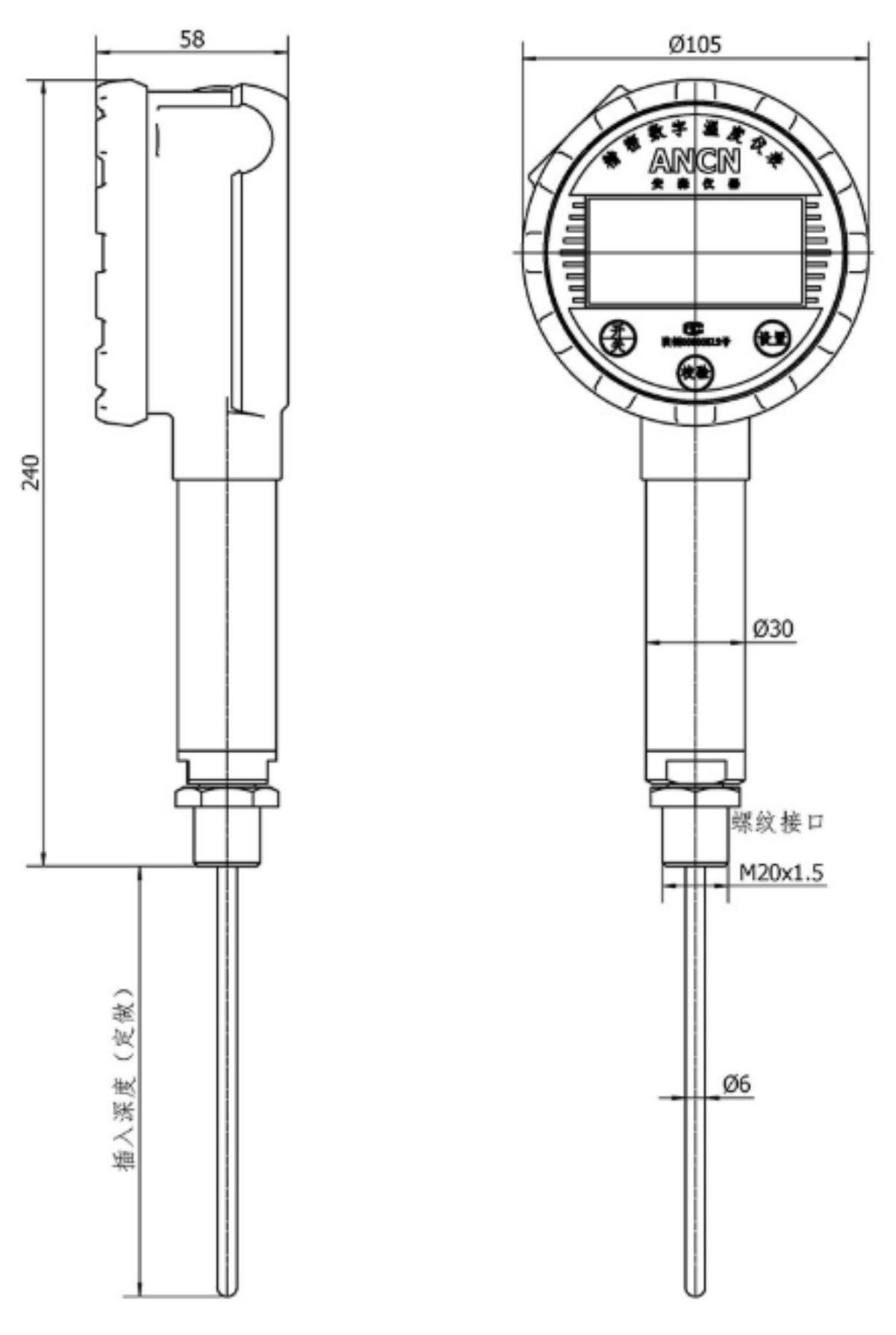

Overall dimensions(Unit:mm)

Selection Guide

Selection Guide of ACT-201 Digital Temperature Gauge
ACT-201
InstallationMode	J	Radial
	Z	Axial
	P	Panel
Accuracy Grade		D	0.2
		E	0.5
Output Signal			R	RS485
			I	4~20mA
Threaded Connection					According to customer’s request
Measuring Range						According to customer’s request
Insert Depth							L...mm
