Digital Temperature Transmitter ACT-101
Details
|
Main Features |
Φ100 standard dial plate. | |||
| Parameters correcting, zero point and error could be amended on the broad. | ||||
| Output signal: 4~20mA, RS485 (Optional) | ||||
|
Main Parameters |
Measuring Range | -200℃~500 ℃ | Accuracy | 0.5%F.S |
| Temperature Sensor | PT100 | Power Supply | 24V DC/220V AC | |
| Protection degree | -30℃~80℃ | Display Mode | 4 Digits LED | |
| Stability | ≤0.1%F.S /year | Relative Humidity | 0~90% | |

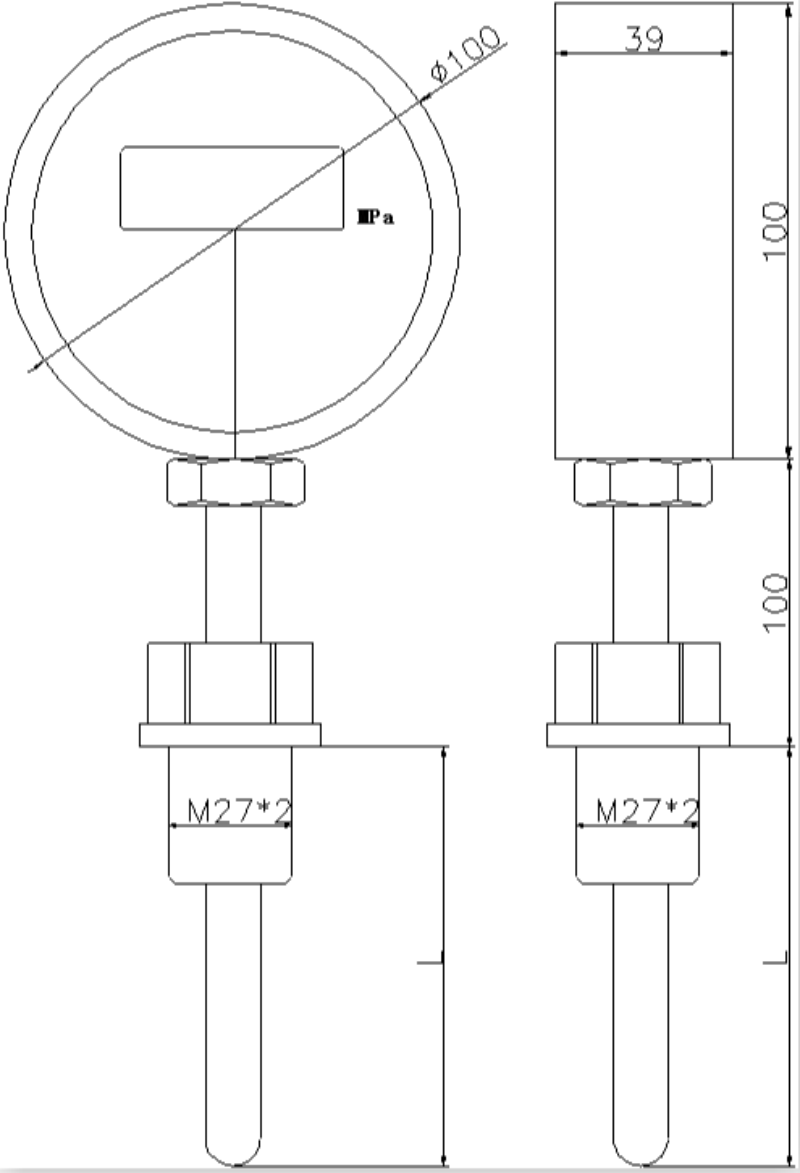

Overall dimensions(Unit: mm)
Selection Guide
|
Selection Guide of ACT-101 Digital Temperature Transmitter |
||||||
| ACT-101 | ||||||
| InstallationMode | J | Radial | ||||
| Z | Axial | |||||
| Output Signal | I | 4~20mA | ||||
| R | RS485 | |||||
| Thread Connection | G12 | G1/2 | ||||
| M20 | M20*1.5 | |||||
| M27 | M27*2 | |||||
| Measuring Range | According to customer’s request | |||||
| Insert Depth | L...mm | |||||
