ECO Pressure Controller ACD-107K
Details
|
Main Features |
φ82mm，radial installation |
|
Two control points with relay output 220V/3A |
|
|
Two control points can be set in site, free configuration |
|
|
Enhanced interference design, suitable for all kinds of electromagnetic harsh industrial environment |
|
Main Parameters |
Measuring Range |
-0.1MPa～0～100MPa |
Accuracy |
0.5%F.S |
|
Overload Capacity |
150%F.S |
Pressure Type |
G/D/A pressure |
|
|
Stability |
≤0.1%F.S /year |
Power Supply |
24V DC/220V AC |
|
|
Display Mode |
4 Digits LED |
Display Range |
-1999～9999 |
|
|
Response time |
<30ms |
Environmental Temperature |
-30℃ ～80℃ |
|
|
Relative Humidity |
0～90% |
Medium temperature |
-40℃ ～150℃ |
|
|
Note：cooling element shall be used when medium temperature exceeds 80℃ |
||||

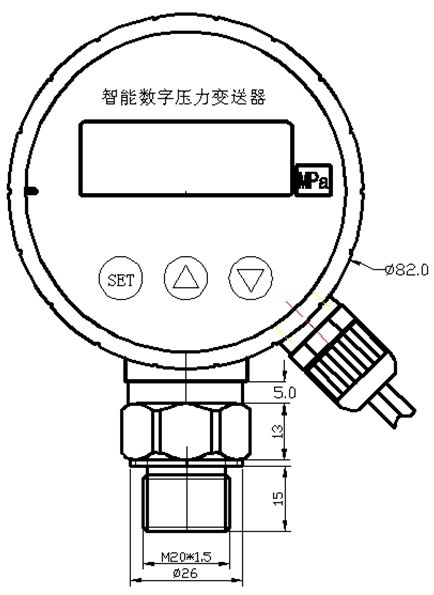

Overall Dimensions (Unit: mm)
Selection Guide
|
Selection Guide of ACD-107 ECO Pressure Controller |
||||
| ACD-107K | ||||
| Thread Connection | G12 | G1/2 | ||
| G14 | G1/4 | |||
| M20 | M20*1.5 | |||
| Power Supply | D | 24V DC | ||
| A | 220V AC | |||
| Measuring Range | According to customer’s request | |||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
Product Advantages Introduction
The ACD-107K ECO Pressure Controller is specifically designed to simplify the operation and increase efficiency of various industrial processes. With its integrated design, this versatile controller eliminates the need for separate pressure measurement and control equipment, saving time and space. Its user-friendly interface allows easy operation and provides accurate, real-time pressure data.
One of the key features of the ACD-107K ECO pressure controller is its precise pressure measurement capability. The controller is equipped with state-of-the-art sensors to ensure accurate and reliable pressure readings even under the harshest operating conditions. Pressure measurements are displayed on a clear, easy-to-read screen, allowing operators to easily monitor and adjust pressure levels.
But the ACD-107K ECO Pressure Controller is not limited to just measuring pressure. It also offers advanced controls for precise, autonomous pressure regulation. The operator can set the desired pressure value and let the controller automatically adjust the pressure within the defined parameters. This eliminates the need for manual intervention, reduces the risk of human error and optimizes process efficiency.
The versatility of the ACD-107K ECO Pressure Controller is truly unmatched. With its wide range of applications, it can be seamlessly integrated into various systems and processes. Whether in hydropower plants, refineries, chemical plants, or mechanical and hydraulic systems, the controller adapts to any industry requirement. Its robust construction ensures longevity and reliability, even in the most demanding environments.
Additionally, the ACD-107K ECO pressure controller has been designed with environmental sustainability in mind. It incorporates energy-saving technologies that minimize power consumption without compromising performance. This not only reduces operating costs, but also contributes to a greener, more environmentally friendly workplace.
