Orifice Flow Meter ACF-1KB

Short Description:

ACF-1KB series orifice flow meter has simple structure, no moving parts, stable and reliable with high precision. High degree of standardization and good linearity make it no need for real – flow calibration. Orifice flow meter is flexible and convenient to use. The differential pressure flow meter is still widely used in current domestic flow measurement, maybe 75%-85% of the total flow meter consumption according to the estimated information. It is widely used in steam boiler, petroleum, chemical industry, steel, electric power, water conservancy, paper making, pharmaceutical, food and chemical fiber industries.

Send email to us

Product Detail

Product Tags

Details

Main Features		The utility model has the advantages of simple structure, safe and reliable, long service life, and is suitable for measuring natural gas and coal-bed gas in single well.
		It is convenient to replace the hole plate and adjust the measuring range in a wide range to meet the changing needs of each stage of the production capacity of a single well.
		No need for real flow calibration, high precision, convenient mass production.
		High and low temperature resistance, high pressure resistance, can measure gas, liquid, steam, wide range of application.
		At the same time display the cumulative flow, instantaneous flow, pressure, temperature.
		Output 4 channels (4~20) mA standard current signal and RS485 standard communication interface.
		Throttle parts are optional: wedge, hole plate, balance hole plate, Venturi, Weiba, Anuiba, etc
Main Parameters		Nominal diameter		DN20～DN1000			Nominal pressure			0MPa～32MPa
		Medium temperature		-50℃～700℃			Accuracy			0.5%F.S、1%F.S
		Range ratio		4:1			Straight pipe			Front 10D Back 5D
		Power supply		24V DC			Connection			Pipe type, clamp type
		Environmental temperature		-30℃～70℃			Output			RS485 + 4～20mA

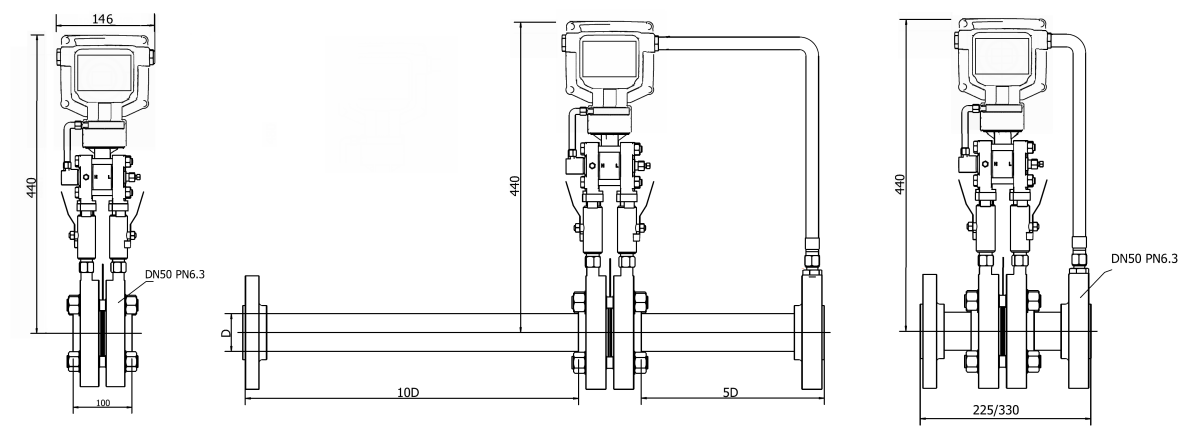

Installation:
Selection:
ACF-1	Code		Throttling device
	KB		Orifice plate
	PHKB		Balance orifice plate
	XX		Wedge-shape
	WQL		Venturi
	WLB		Veracalc
	ANB		Annubar
			Code		Output signal
			K		RS485/Current/Pulse
					Code	Accuracy
					E	0.5
					F	1
					I	1.5
					Y	Special
						Code		Nominal diameter
						DN		DN20～DN200
						Y		Special
								Code	Pressure rating
								PN	0～32MPa
								Y	Special
									Code		Measuring medium
									G		Gas
									L		Liquid

Our Advantages

1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
