Pressure Transmitter ACD-131
Details
|
Main Features |
Wide measuring range |
|
Whole body SS case for multi medium |
|
|
High accuracy and stability |
|
|
Strong anti-interference design |
|
Main Parameters |
Measure Range |
-0.1MPa ～0～100MPa |
Accuracy |
0.5%F.S |
|
Stability |
≤0.1%F.S /year |
Overload Capacity |
200%F.S |
|
|
Power Supply |
12～30V DC |
Pressure Type |
D/A/G Pressure |
|
|
IP Grade |
IP65 |
Environmental Temperature |
-30℃ ～80℃ |
|
|
Media Temperature |
-40℃ ～150℃ |
Relative Humidity |
0～90% |
|
|
Note：cooling element shall be used when medium temperature exceeds 80℃ |
||||

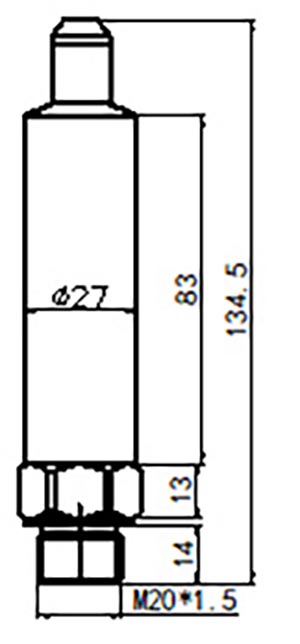

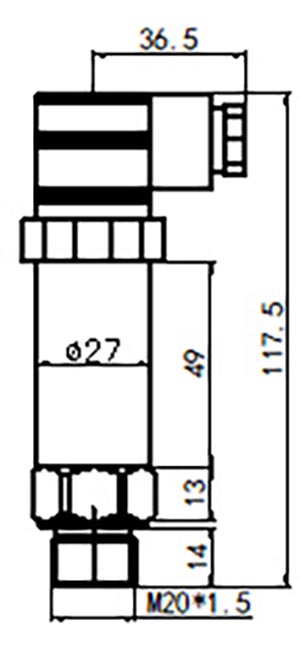

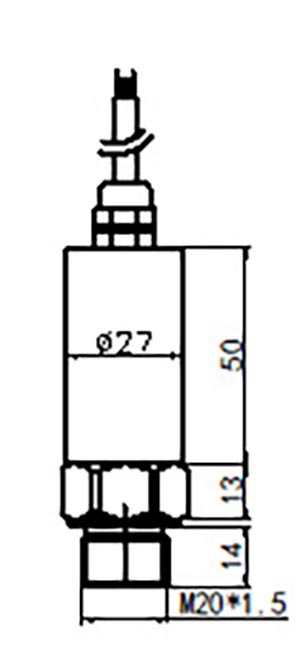

Overall Dimension
ACD-131H
ACD-131Z
ACD-131M
Selection Guide
|
Selection Guide of ACD-131 Pressure Transmitter |
||||
|
ACD-131 |
|
|||
|
Electronic Connection |
H |
Hirschmann |
||
|
M |
M12 |
|||
|
Z |
Cable |
|||
|
Output |
I |
4～20mA |
||
|
R |
RS485 |
|||
|
V |
0～5V/10V |
|||
|
Thread Connection |
G12 |
G1/2 |
||
|
G14 |
G1/4 |
|||
|
M20 |
M20*1.5 |
|||
|
Measuring Range |
According to customer’s request |
|||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
