Storage Pressure Gauge ACD-2C
Details
|
Main Features |
0.25 ~ 7200 Hz sampling rate |
|
10 thousand data storage capacity, easy to carry and collect data |
|
|
Magnetic induction button design, not easy to damage |
|
|
Pressure percentage bar charts shows |
|
|
Signal isolation technique, anti-electromagnetic interference and RFI technique |
|
|
Zero stable technology, increase the stability of the instrument |
|
Main Parameters |
Units |
kPa, MPa, psi, bar, mbar and so on |
||
|
Measuring Range |
-0.1MPa～0～260MPa |
Accuracy |
0.5%F.S、0.2%F.S 0.1%F.S、0.05%F.S |
|
|
Power supply |
4.1V rechargeable battery |
Display Mode |
5 digits LCD |
|
|
Overload Capacity |
150%F.S |
Stability |
≤0.1%F.S /year |
|
|
Environmental Temperature |
-30℃～70℃ |
Relative Humidity |
0～90% |
|
|
IP Grade |
IP65 |
Ex-proof Grade |
ExiaIICT4 Ga |
|

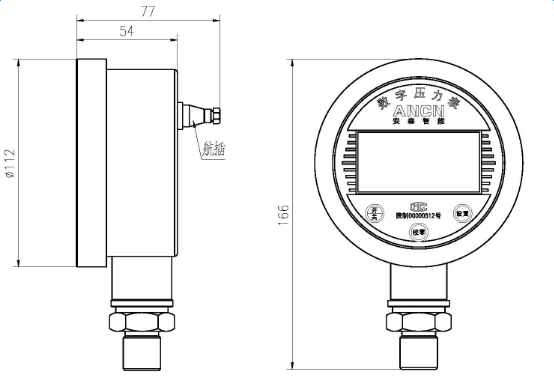

Overall Dimension
(unit: mm)
Selection Guide
|
Selection Guide of ACD-2C Storage Pressure Gauge |
||||||
| ACD-2C | ||||||
| Installation
Mode |
J | Radial | ||||
| Z | Axial | |||||
| P | Panel | |||||
| Accuracy Grade | B | 0.05 | ||||
| C | 0.1 | |||||
| D | 0.2 | |||||
| E | 0.5 | |||||
| Communication | U | USB | ||||
| Threaded Connection | According to customer’s request | |||||
| Measuring Range | According to customer’s request | |||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
