Storage Pressure Gauge ACD-2CTF
Details
|
Main Features |
1 ~ 7200 Hz sampling rate |
|
10 thousand data storage capacity, easy to carry and collect data |
|
|
Magnetic induction button design, not easy to damage |
|
|
Pressure percentage bar charts shows |
|
|
Signal isolation technique, anti-electromagnetic interference and RFI technique |
|
|
Zero stable technology, increase the stability of the instrument |
|
Main Parameters |
Units |
kPa, MPa, psi, bar, mbar and so on |
||
|
Measuring Range |
-0.1MPa～0～260MPa |
Accuracy |
0.5%F.S, 0.2%F.S 0.1%F.S, 0.05%F.S |
|
|
Display Mode |
6 digits LCD |
Power supply |
3.6V DC |
|
|
Overload Capacity |
150%F.S |
Stability |
≤0.1%F.S /year |
|
|
Environmental Temperature |
-30℃～70℃ |
Relative Humidity |
0～90% |
|
|
IP Grade |
IP65 |
Ex-proof Grade |
ExiaIICT4 Ga |
|

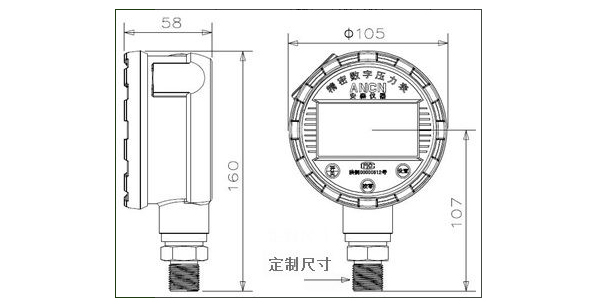

Overall Dimension
(unit: mm)
Selection Guide
|
Selection Guide of ACD-2CTF Storage Pressure Gauge |
|||||
| ACD-2CTF | |||||
| Accuracy Grade | B | 0.05 | |||
| C | 0.1 | ||||
| D | 0.2 | ||||
| E | 0.5 | ||||
| Communication | T | TF card | |||
| Threaded Connection | According to customer’s request | ||||
| Measuring Range | According to customer’s request | ||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
Product Advantages Introduction
The ACD-2CTF Storage Pressure Gauge is an innovative and technologically advanced device that integrates local display, data storage and communication functions, providing a comprehensive solution for pressure measurement and analysis. With its cutting-edge features and functions, this storage pressure gauge not only provides accurate, real-time pressure readings, but also enables efficient data collection and storage for further analysis.
The ACD-2CTF Storage Pressure Gauge features a large, easy-to-read 6-digit display for convenient on-site monitoring of pressure values and their corresponding time stamps. This immediate visual feedback ensures that any fluctuations or anomalies in pressure levels are immediately noticed by the user, facilitating proactive maintenance and troubleshooting.
An outstanding feature of the ACD-2CTF storage pressure gauge is the ability to store both the displayed pressure value and the accompanying time stamp. This seamless integration of data storage and display makes it easy for users to retrieve and analyze pressure data at a later date. In addition, the device is equipped with a storage capacity that extends the data collection time, ensuring that no important information is missed or lost.
The ACD-2CTF storage pressure gauge also offers a variety of communication functions for seamless data transfer and retrieval. Through its compatible communication interface, users can easily connect the meter to a computer, enabling efficient data retrieval and analysis on a larger scale. In addition, the device is designed to support a wide variety of external devices, making it compatible with various data analysis software and systems.
This multi-purpose storage pressure gauge has a wide range of applications in multiple industries. In the field of oil and gas extraction, the ACD-2CTF storage pressure gauge is invaluable in accurately monitoring pressure levels during extraction and distribution. Furthermore, in urban water, heat and gas networks, the device ensures effective monitoring and management of pressure levels, helping to prevent potential leaks and damage.
Laboratories also greatly benefit from the ACD-2CTF storage pressure gauge as it facilitates accurate and reliable pressure data collection and storage. The ability to analyze pressure data helps to conduct experiments, meet regulatory requirements and ensure the safety and quality of laboratory processes.
