Temperature Transmitter ACT-131

Short Description:

ACT-131 temperature transmitter is a perfect combination of temperature sensor and transmitter. It converts the temperature signal within the range of -200℃~1600 ℃ into the electrical signal of the two-wire system 4~20mA DC and transmits it to the display instrument, regulator, recorder and DCS in a very simple way, so as to realize the accurate measurement and control of temperature. It is suitable for all-weather acquisition or communication in the field or in harsh environment. It is used for temperature monitoring and remote transmission in oil and gas wells to meet the demand of temperature acquisition in corrosive places.

Send email to us

Product Detail

Product Tags

Details

Main Features	Ultra-small integration, strong versatility.
	Two-wire 4~20mA output signal, long transmission distance, strong anti-interference ability.
	High measuring accuracy, good long-term stability.
	The internal temperature module adopts epoxy resin casting process, which is suitable for used in all kinds of harsh and dangerous places.
	Integrated design, simple and reasonable structure, can directly replace the ordinary assembled thermocouple, thermal resistance.
Main Parameters	Measuring Range	-200℃~1600 ℃	Accuracy	0.5%F.S
	Stability	≤0.1%F.S /year	Power Supply	12V~30V DC
	Environmental Temperature	-30℃~80℃	Medium Temperature	-40℃~85℃
	Relative Humidity	0~95%	Protection Degree	IP65

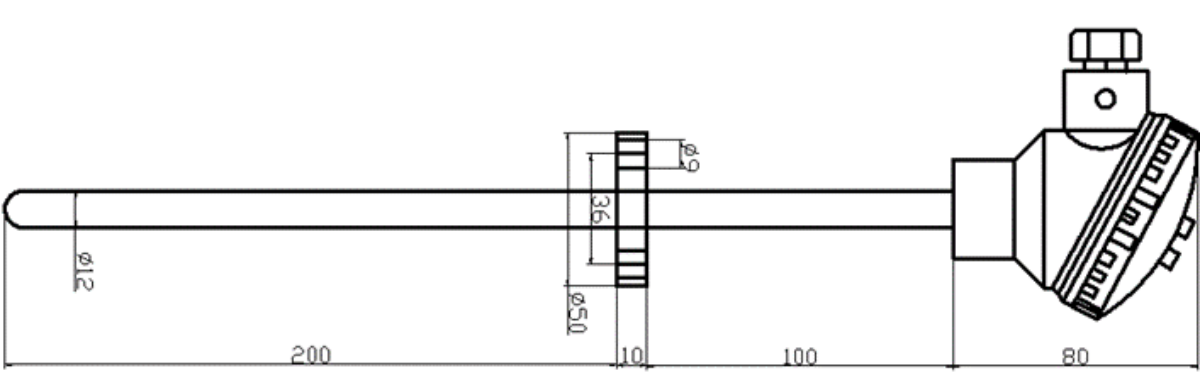

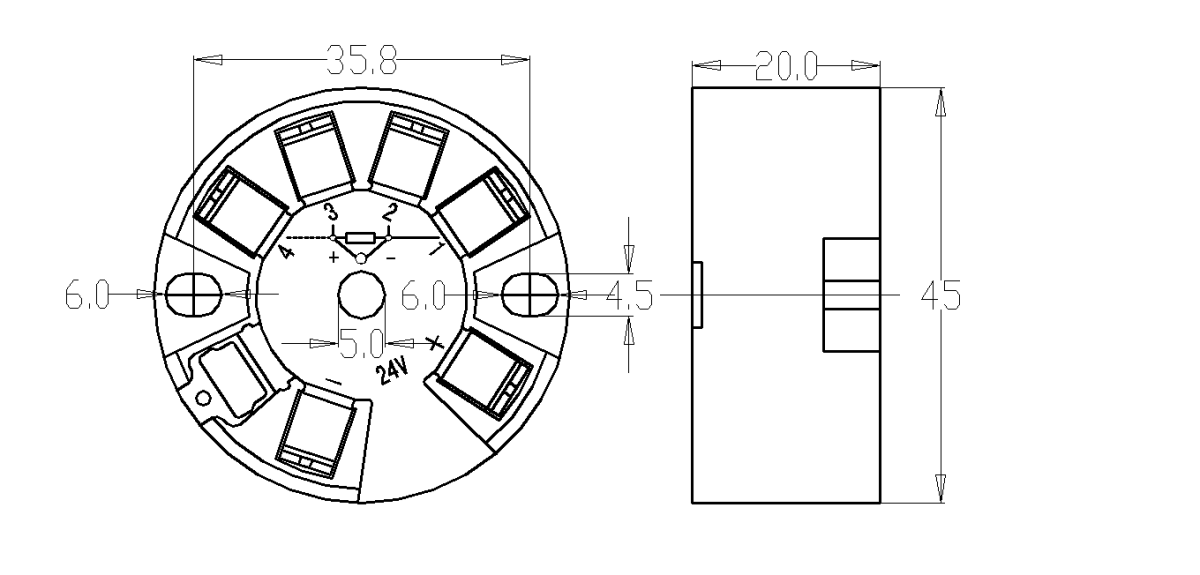

Overall dimensions(Unit:mm)

Selection Guide

Selection Guide of ACT-131 Temperature Transmitter
ACT-131
Senor Type	A	Thermocouple
	B	Thermal Resistance
Output Signal		W	Sensor Output
		I	4~20mA
Threaded Connection			M20	M20*1.5
			M27	M27*2
Measuring Range					According to customer’s request
Insert Depth						L...mm
