Vortex Flow Meter ACF-LUGB

Short Description:

ACF-LUGB series vortex flow meter is a kind of flow meter which uses piezoelectric crystal as detection element and outputs a standard signal proportional to the flow rate. The instrument can be directly with the DDZ – Ⅲ instrument system, can also be used with the computer and distributed systems, with different medium flow parameter measurement. Widely used in petroleum, chemical industry, metallurgy, heating and other departments. Measure the flow of liquid, gas and steam.

Send email to us

Product Detail

Product Tags

Details

Main Features	The sensor element is encapsulated in the probe body. The detecting element does not touch the measuring medium and has a long service life.
	Simple structure, no moving parts, high durability.
	The measuring probe of the sensor is sealed with special process and can withstand high temperature up to 350℃.
	The sensor adopts compensation design to improve the seismic resistance of the instrument.
	Wide measuring range and high accuracy.
Main Parameters	Nominal Diameter	(15~1500)mm	Nominal Pressure	1.6Mpa 2.5Mpa 4.0Mpa
	Measuring Medium	Liquid, Gas, Steam	Accuracy	0.5%F.S,1.0%F.S, 1.5%F.S
	Power Supply	24VDC/220VAC/3.6V	Output Signal	Current/ Voltage/ Pulse
	Material	Carbon steel / Stainless steel	Medium Temperature	-40℃~350℃
	Connection	Flange/ Insert/ Clamp	Cable Interface	PG10
	Environmental Temperature	-30℃~70℃	Relative humidity	0~90%

Installation

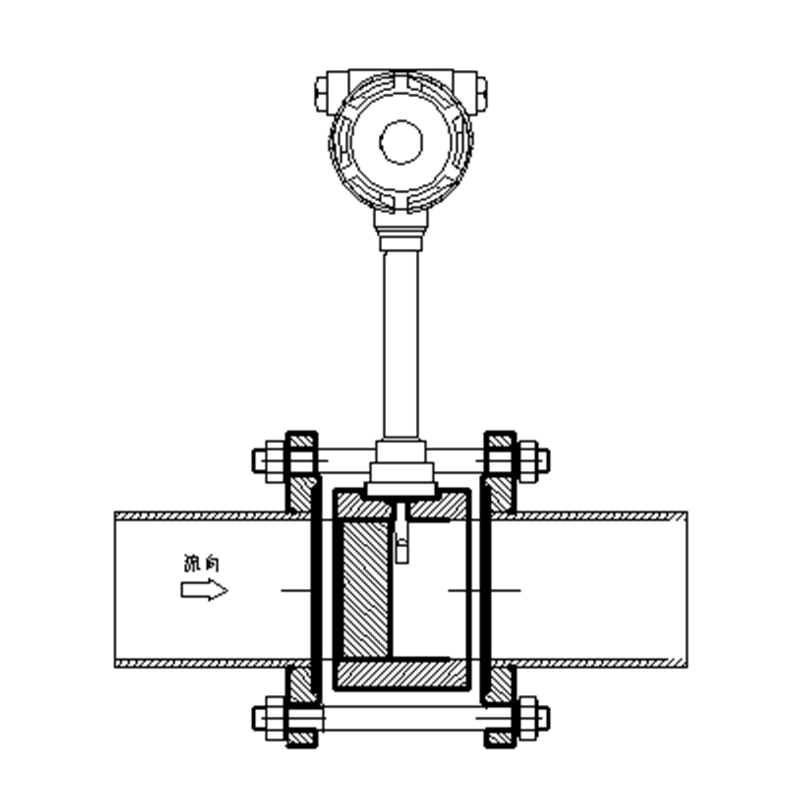

Flange clamping type

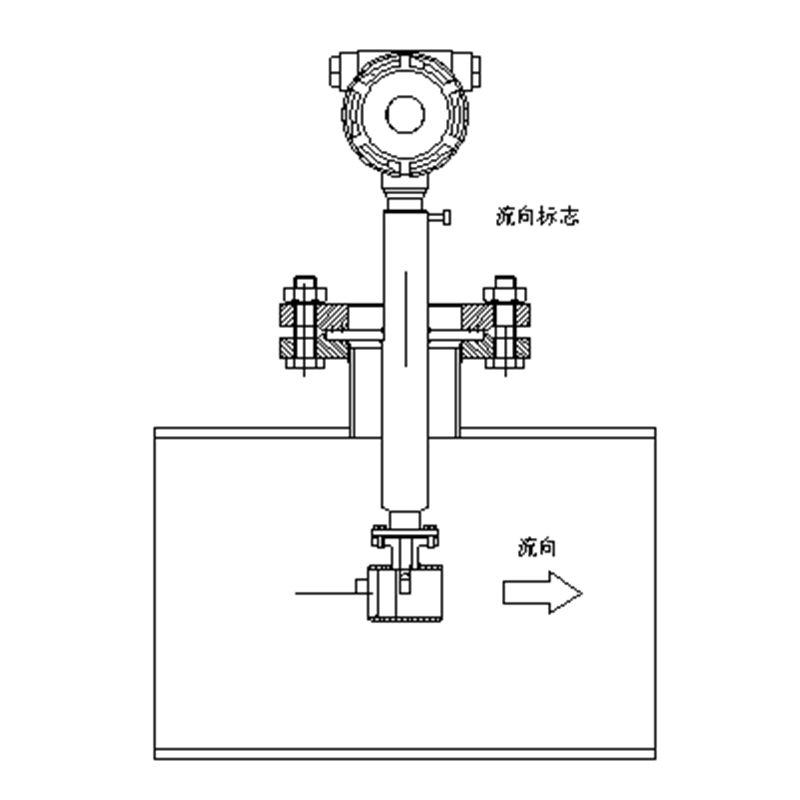

Insert type

Selection

ACF-LUGB	Code	Connection
	FL	Flange
	KZ	Flange clamping type
	CR	Insert type
		Code	DN
		DN	15~400
			Code	Output signal
			A	Standard signal output (4-20mA or Pulse)
			M	On-Screen Display
				Special	Accessories
				G	High Temperature(350℃)
				W	Temperature Compensation
				Y	Pressure Compensation
				Z	Temperature&Pressure Compensation
